Wheel Loader
    ItemUnitFM915
    Overall performance parameters specificationMinimum turning radius mm 4750
    Theoretical Gradeability  °25
    Maximum  speed Km/h27
    Maximum dumping heightmm 3500
    Maximum dump reach

    Discharging distance mm 710
    Discharging angle°28
    Bucket capacity 0.75
    Bucket width/depth mm 2100/496
    Wheel basemm 2355
    Lifting time(unladen)s
    Lowering time(unladen)s
    Discharging time(unladen)s
    Total cycle times10.45
    Maximum digging force kN45
    Maximum traction effort kN40
    Maximum breakout forcekN
    Tipping loadkN
    Main dimensions and weight specificationVehicle length mm 6150
    Vehicle heightmm2835
    Vehicle widthmm2140
    Rated loading weightKg1600
    Operating weightKg5276
    Total weightKg
    Minimum ground clearance mm370
    Wheel trackmm1560
    EngineModel
    YN38GB
    Manufacturer
    Yunnei
    Rated power kW76
    Rated speedr/min2400
    DisplacementL3.8
    Number of cylinders
    4
    Cylinder diametermm102*115
    Maximum torque N.m290
    Minimum fuel consumption rateg/kW. h≤260
    TransmissionModel
    265
    Gearshift
    Front 4 rear 4
    Braking type
    Air brake
    Axle
    Middle hub
    Tire type
    16/70-20
    Front tire air pressureMpa0.33
    Rear tire air pressureMpa0.3
    FuelVolumeL80
    Hydraulic oil L80
    Axle - SingleL14
    Engine L6.8
    Transmission L22
    Braking system L1.5
    Steering systemModel
    Full hydraulic steering
    Steering angle °33
    System working pressureMpa16

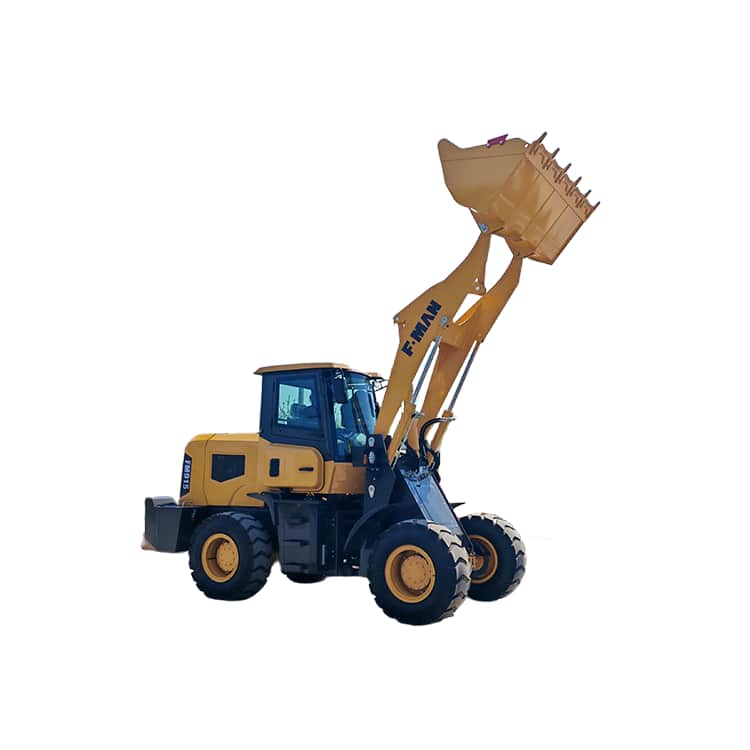

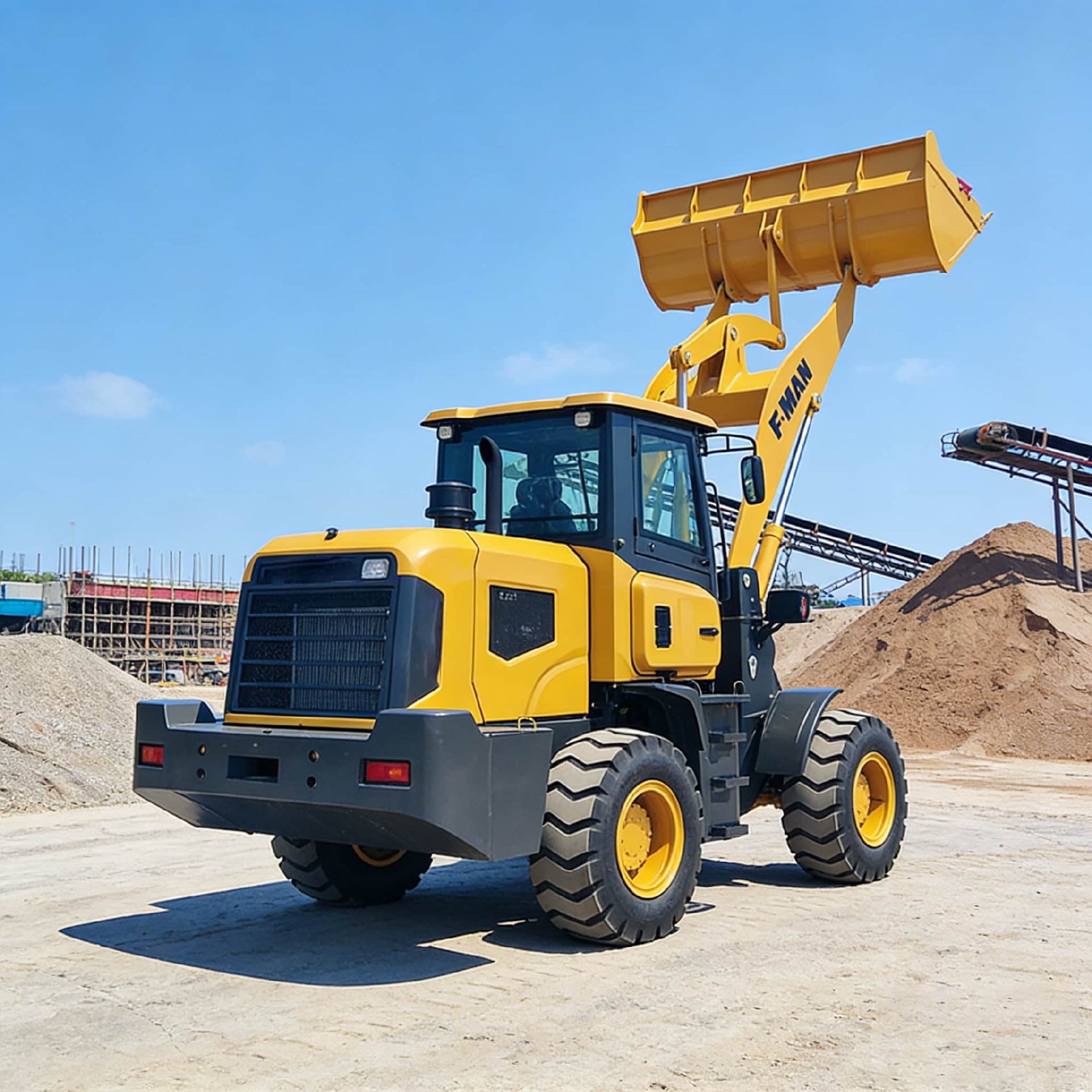

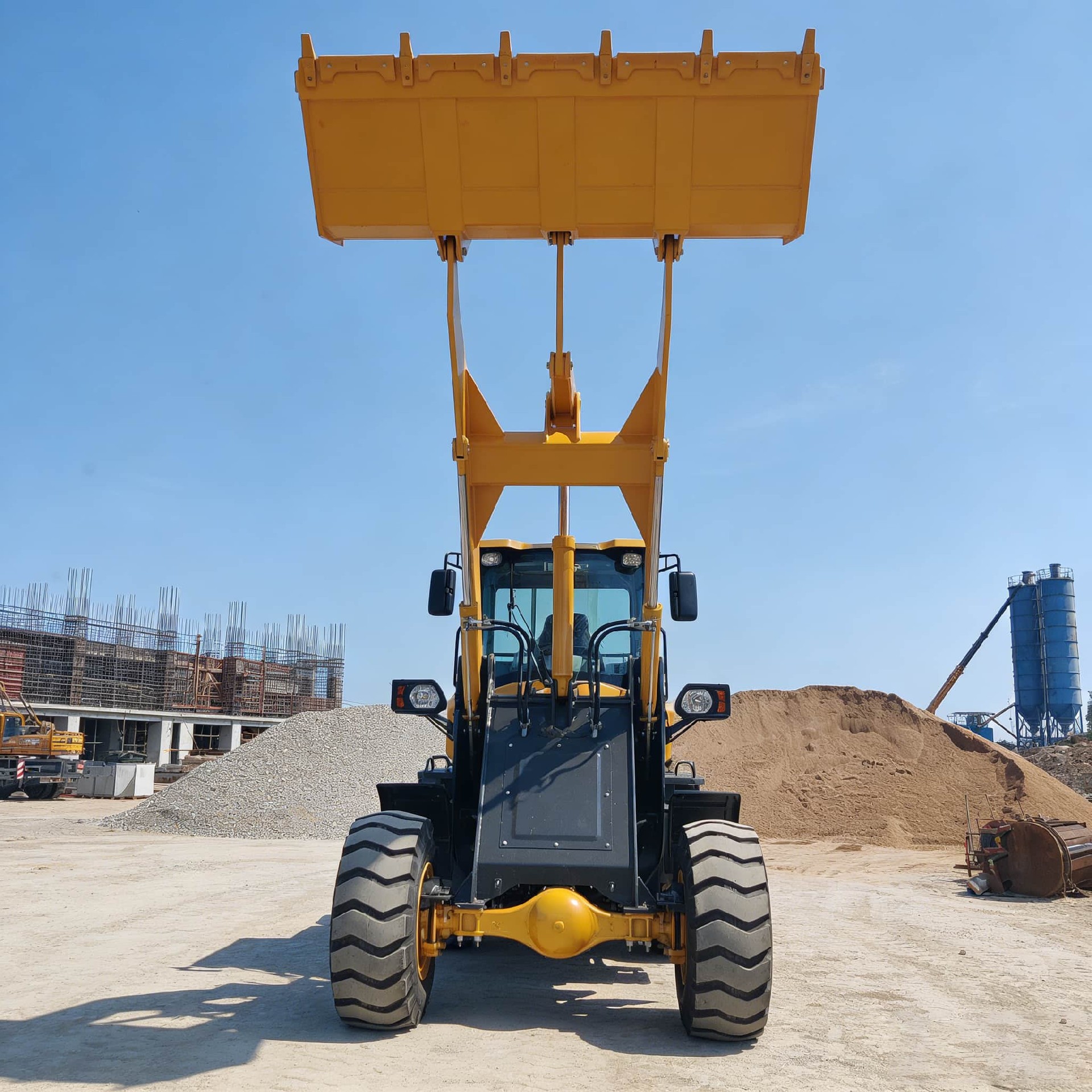

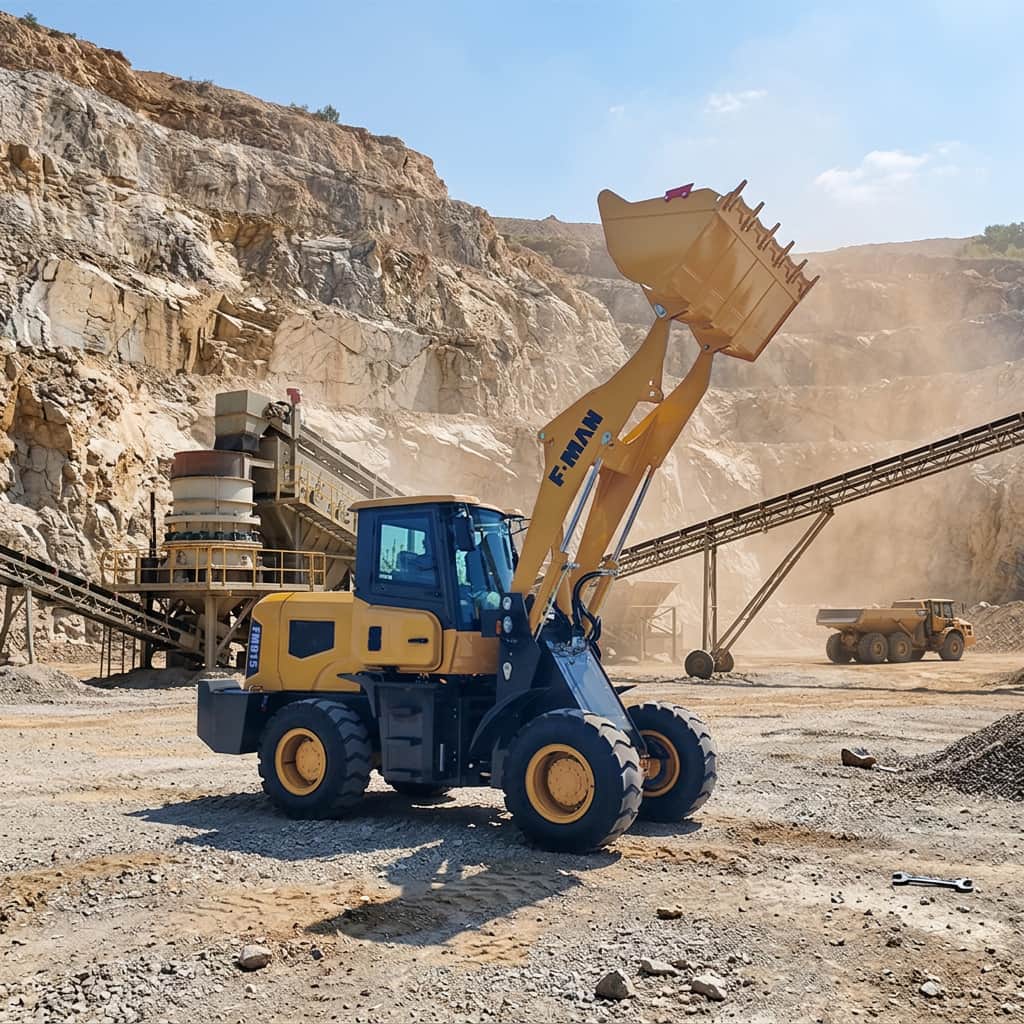

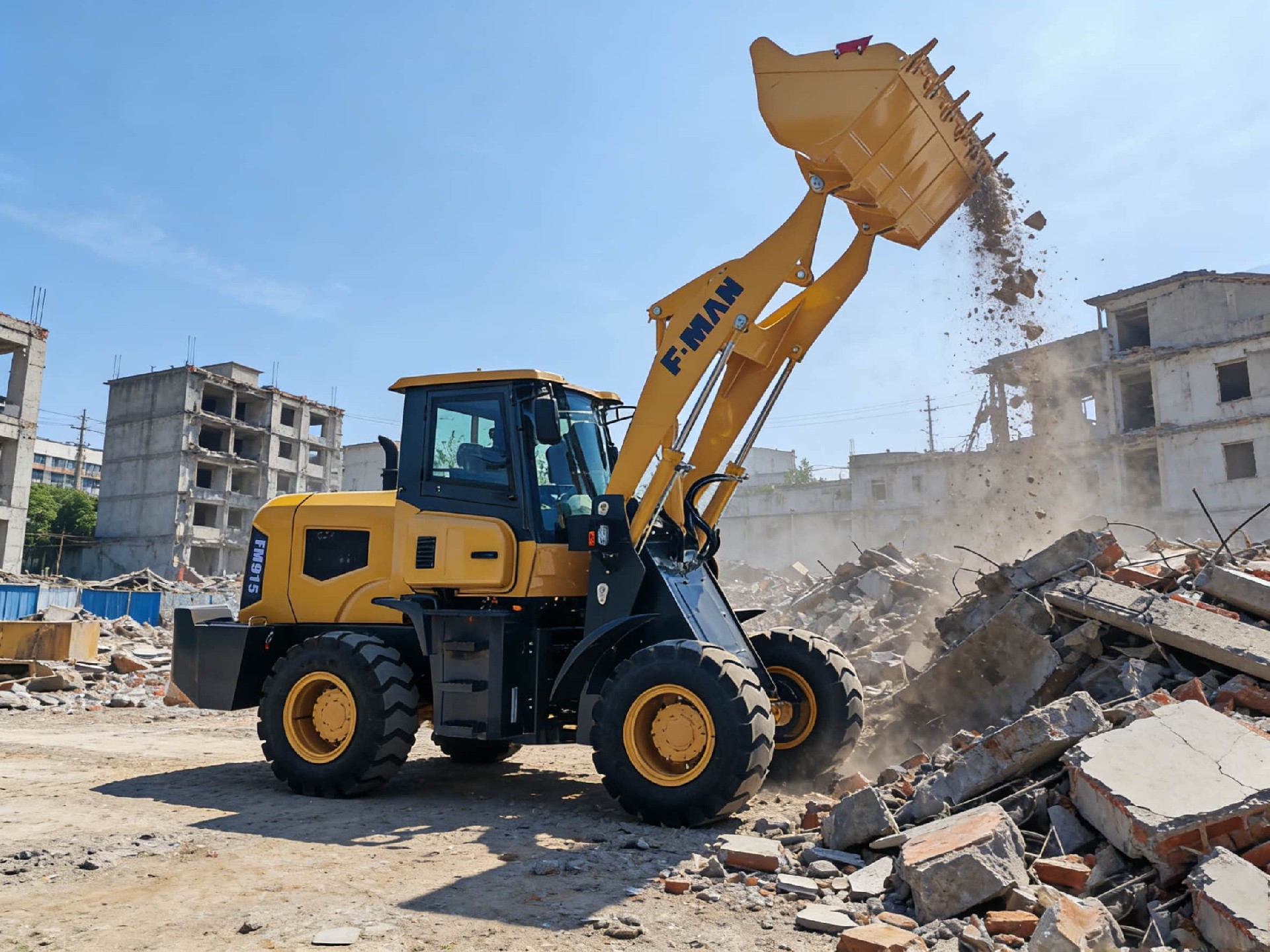

    FMAN FM915 wheel loader is designed for construction needs requiring higher load capacity and greater work intensity, emphasizing stable output and continuous efficiency. It is suitable for earthmoving projects, sand and gravel handling, and various medium-sized material handling scenarios. The machine achieves a harmonious balance between loading capacity, power matching, and structural stability, providing reliable support for high-frequency operations.

    The combination of a 1600kg rated load and a 0.75m³ bucket allows the FM915 to handle materials more efficiently in a single operation, reducing unnecessary work cycles and improving the overall construction pace. The Yunnei engine delivers 76kW of stable power, with direct response and smooth operation, capable of meeting the demands of continuous operation and complex working conditions.

    The 3500mm discharge height enhances the equipment's loading and unloading adaptability, easily connecting to transport vehicles of different heights and optimizing on-site work processes. The overall structure is rationally designed with a stable center of gravity, ensuring good handling and maneuverability while maintaining loading capacity.

    The FM915 focuses on long-term value, with durable and reliable key components, clear maintenance access, and easy daily inspection and maintenance, effectively reducing downtime and operating costs. It is a medium-sized loading equipment option that combines efficiency, stability, and practicality.
