Site Dumper
    EngineEngine Model
    Kubota D1105
    Engine Type
    Diesel engine,vertical three
    cylinder water-cooled
    Rated Power
    25HP/2800rpm
    Fuel Type
    diesel oil
    Fuel tank capacity:
    35L
    WeightTotal Weightkg2500
    Max loading weightkg2000
    Dimens ionmm3760*1500*2450
    Container size:mm1730*1280*600
    Overall width:mm1500
    HopperCargo box Capacity1.28
    Tipping Systme
    Hydraulic Tipper
    Tilting Angle°90
    Container rotation angle°180
    Unloading height:mm750
    Ground clearance:mm290
    Turning radius:mm5000
    Overturning distance:mm610
    WalkWalking Speedkm/h12
    Climbing abillty°30
    Tire model:
    12-16.5
    wheelbase:mm1930
    Hydraulic oilHydraulic oil model
    46 # Anti-wear Hydraulic Oil
    Hydraulic oil tank capacity:L35
    Engine selection and matchingEngine model:
    CHANG CHAI 390(柴油)
    Emission
    国二/欧五
    Horsepower/RPM
    39HP/2600rpm

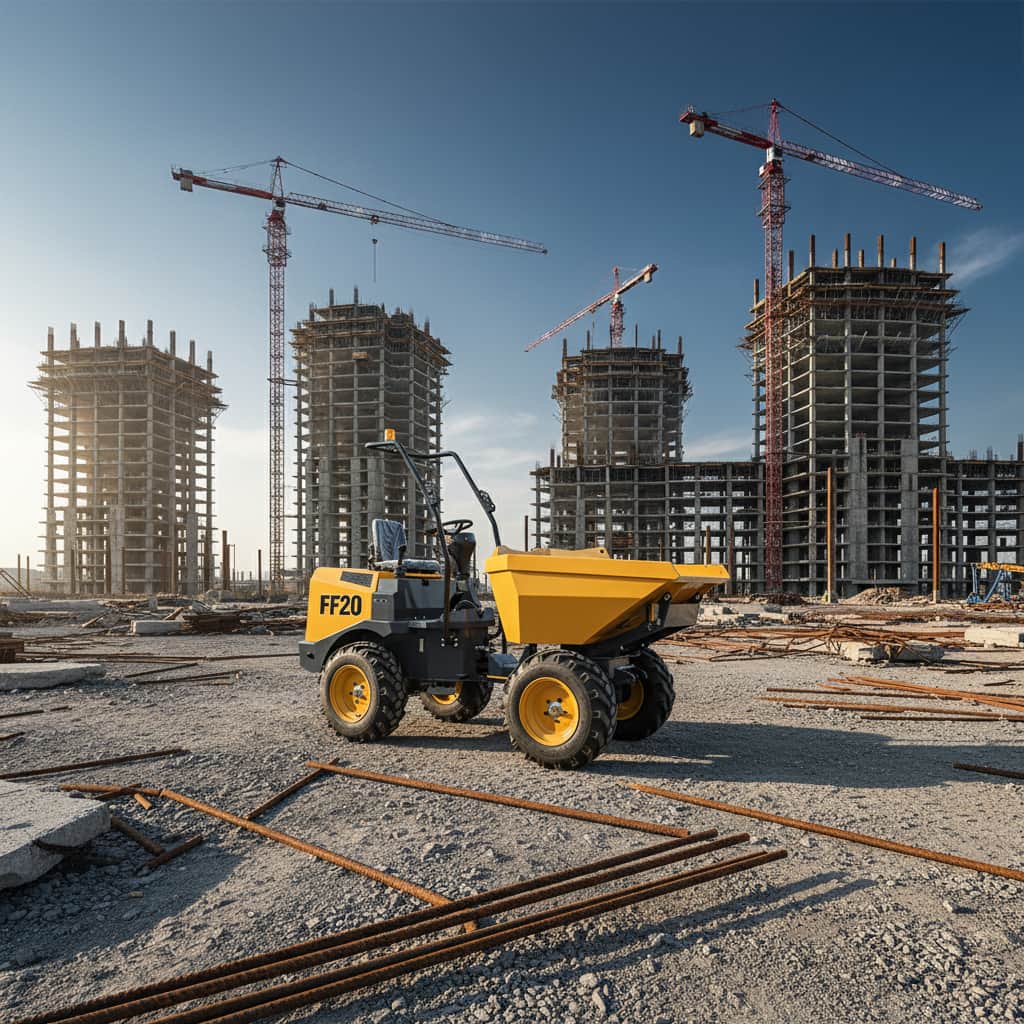

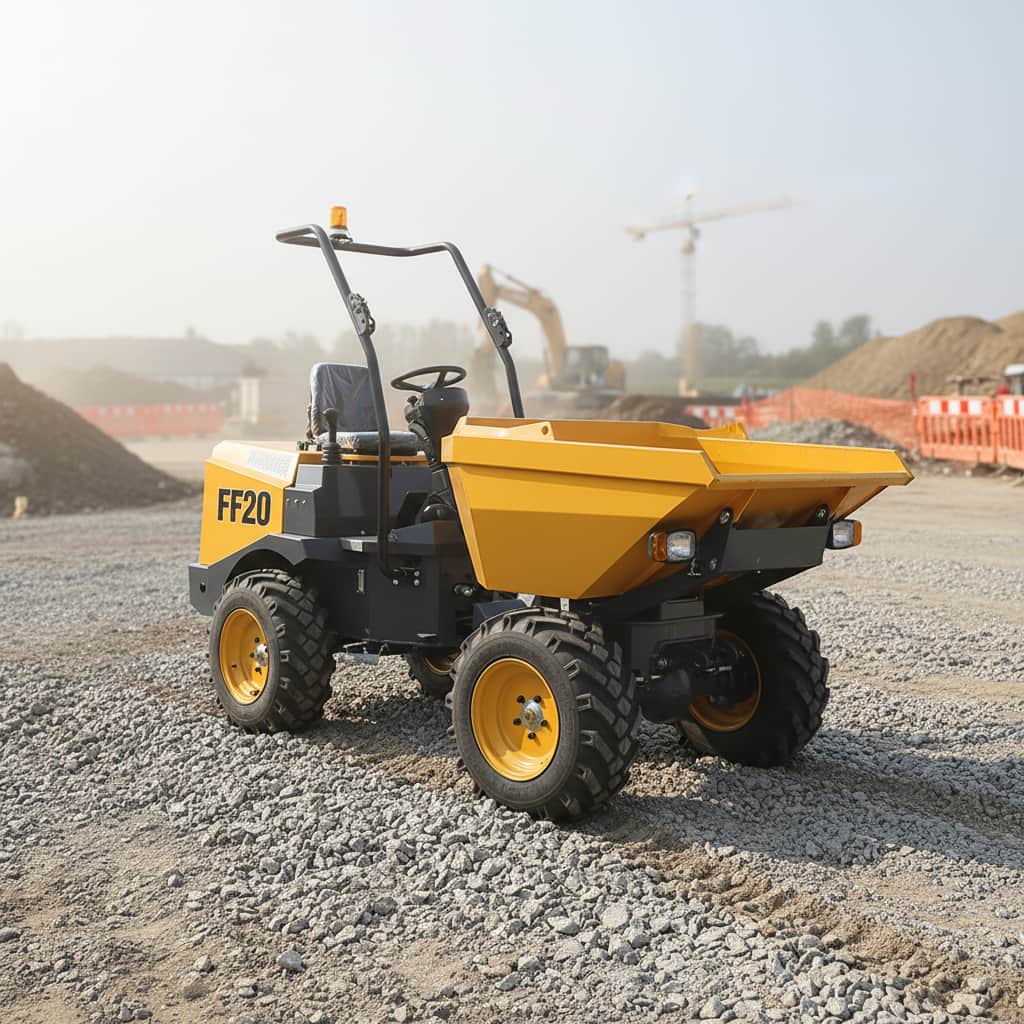

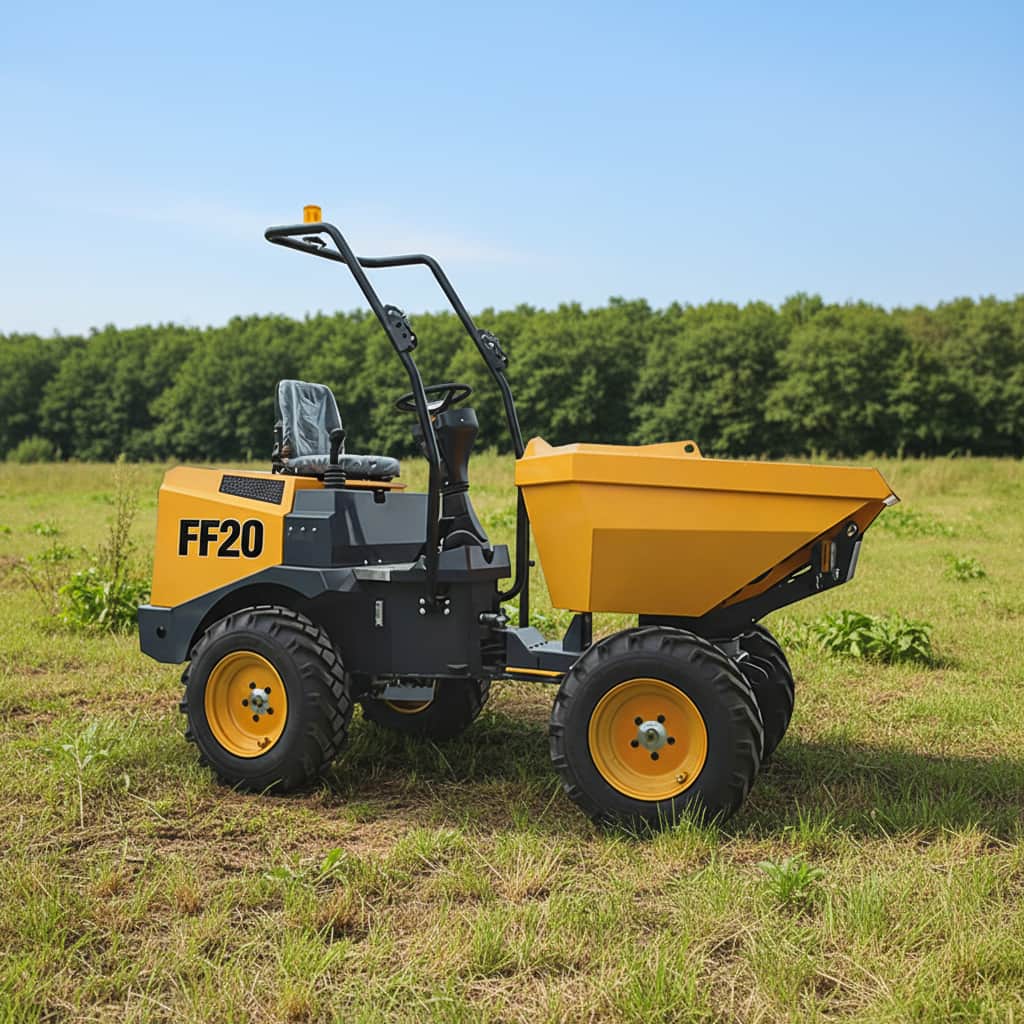

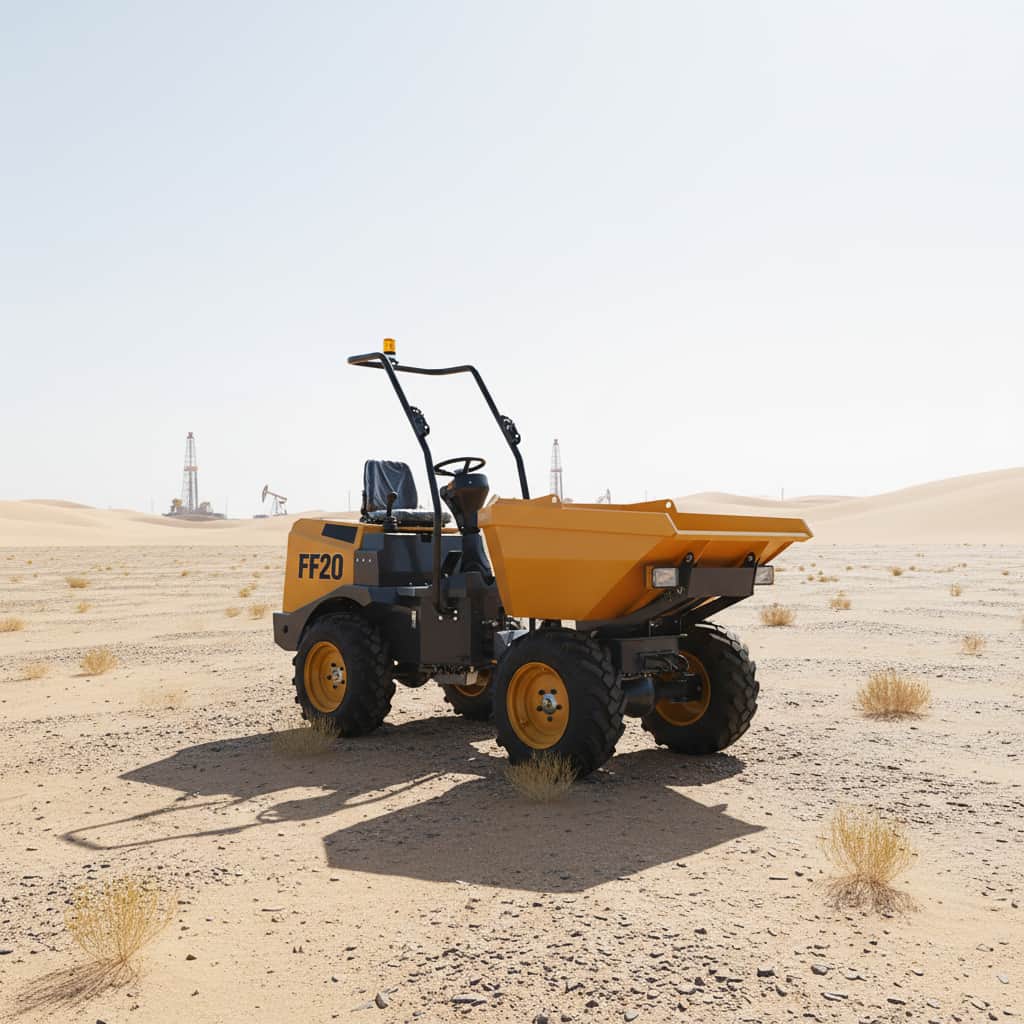

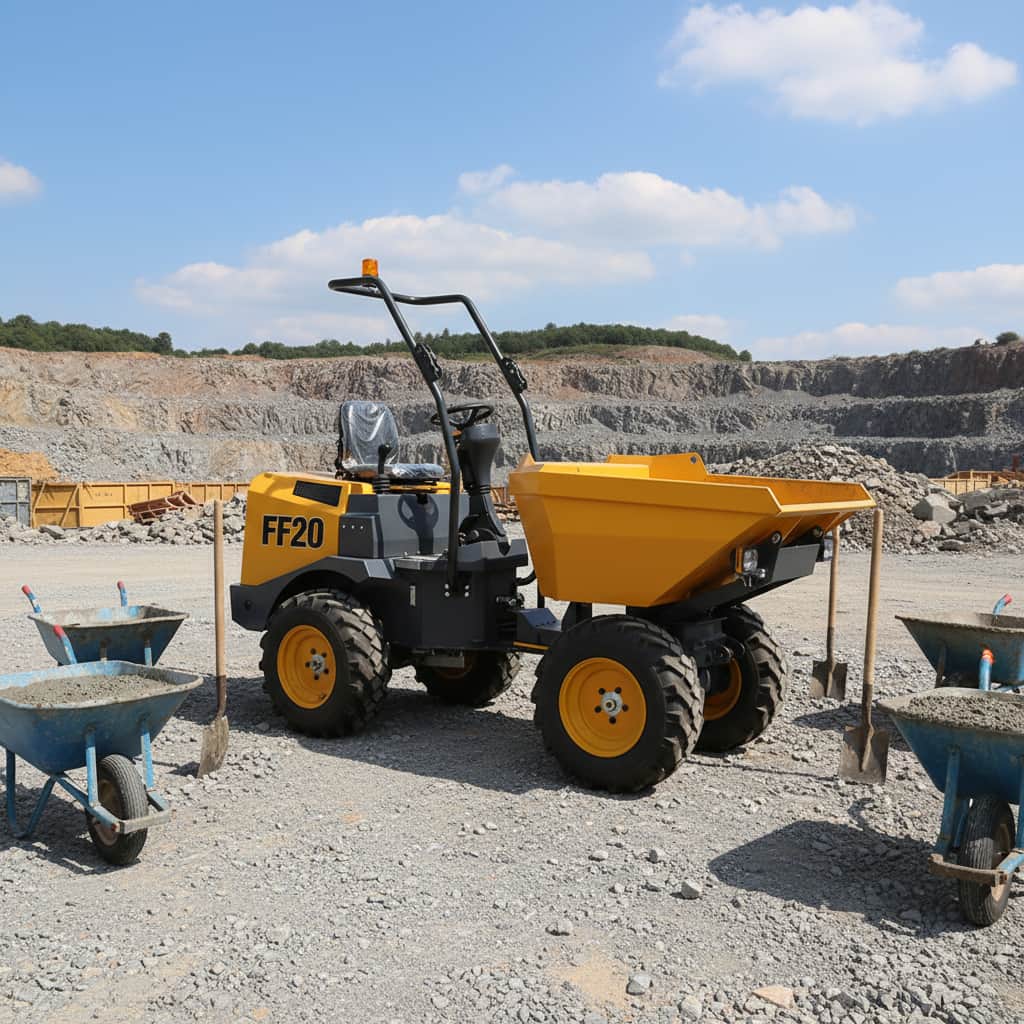

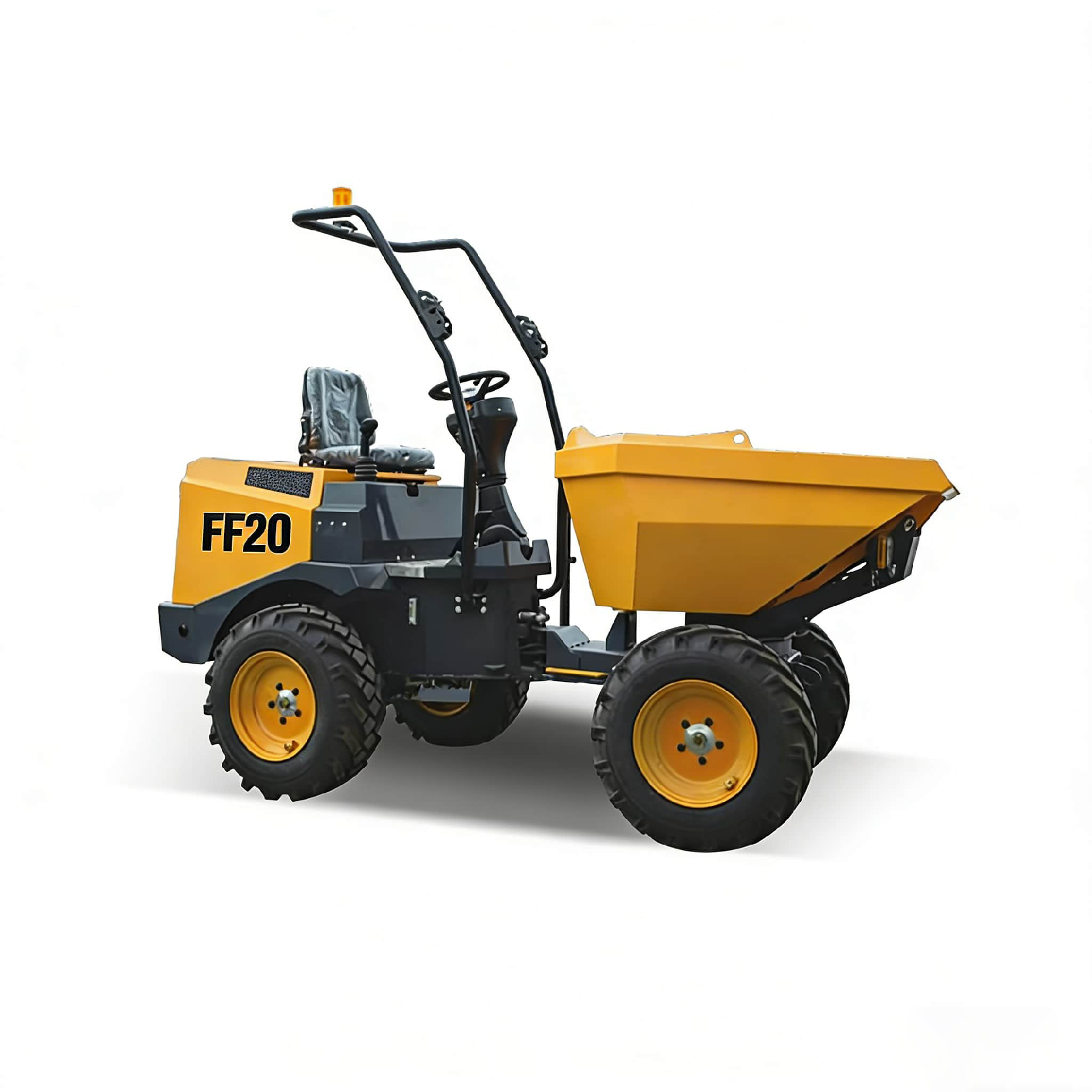

    The FF20 Site Dumper is a compact and efficient construction transport vehicle designed for construction sites, mining areas, and small-scale earthmoving operations. Its robust structure and maneuverability allow it to easily navigate narrow or complex terrain.

    Equipped with a Weichai engine with a rated power of 25HP, it offers reliable power and is suitable for high-frequency loading and short-distance transport operations. The box dimensions are 3760*1500*2450 mm, with a maximum load of 2000 kg. The tipping design allows for quick and convenient loading and unloading of earth, gravel, or building materials, significantly improving construction efficiency.

    The FF35 Site Dumper is easy to operate and maintain, making it an efficient, stable, and reliable piece of equipment for small and medium-sized construction teams in the transportation of earthwork on construction sites.
