off-road wide-body dump truck
Home Products off-road wide-body dump truck
    cabFlip over wide body offset cab (left-hand drive)
    Engine model/horsepowerWeichai WD12G420E211 National II
    Transmission modelFast 7DS220
    Steering gearShashi Jiulong steering gear
    Front/rear axleFMAN13T cast steel front axle/FMAN25T cast steel dual stage reduction middle and rear axle
    FrameWelded semi-rigid box frame 480 * 140
    Dimensions inside the cargo box (mm)5600*2850*1550
    Top up descriptionQ345 bottom plate 16mm, side plate 12mm, front lift, domestic oil cylinder, mine tail compartment
    Tires14.00-25PR mining tire
    Front/Rear SuspensionIntegrated welded balance suspension, reinforced detachable balance shaft
    Front, middle, and rear axle leaf springs15/100*16,12/100*30
    braking systemSORL system
    Curb weight (kg)22000
    Rated load capacity (kg)43000
    Rated total mass (kg)65000
    Dimensions (mm)8680*3050*3800
    Top speed (km/h)42
    Minimum ground clearance (mm)365
    Minimum turning radius (m)≤10m
    Maximum climbing ability (%)40%
    Wheelbase (mm)3650+1560
    Track width (front/rear) (mm)front2368，rear2252

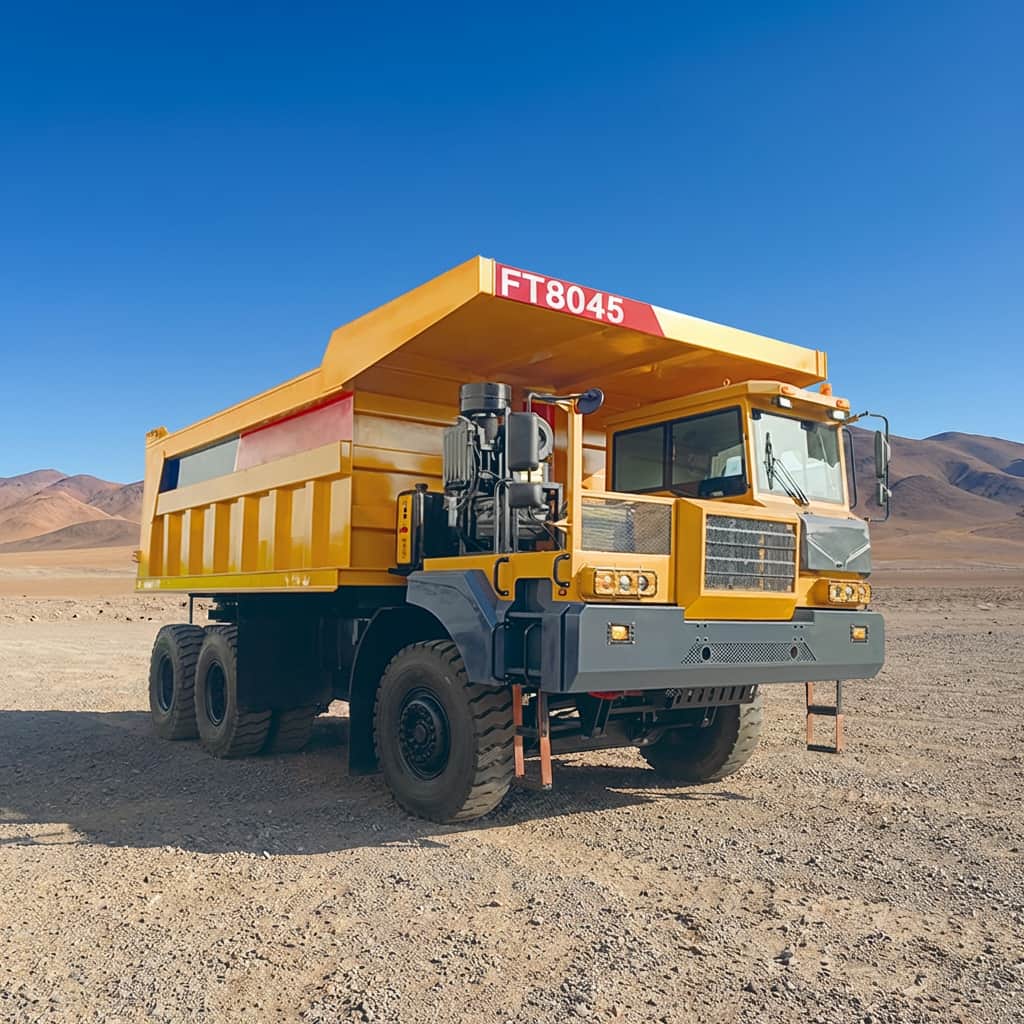

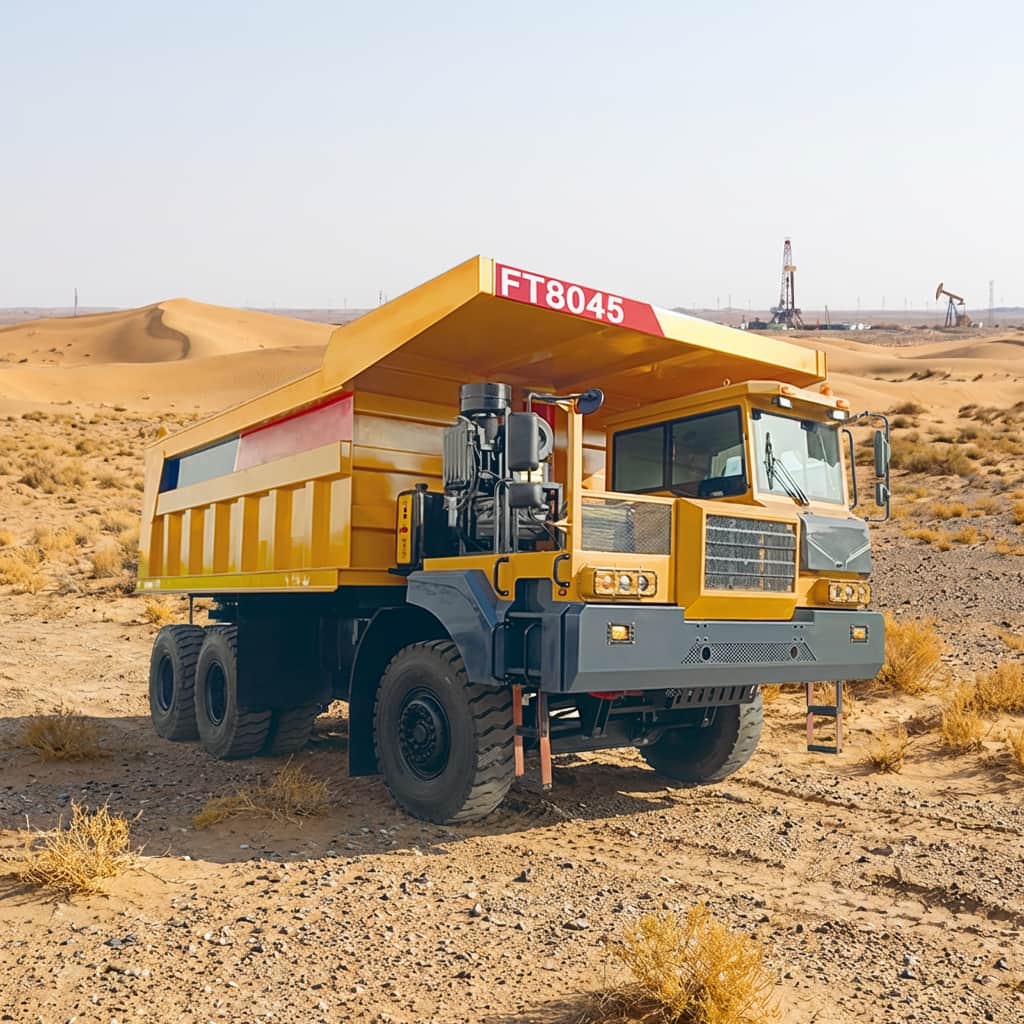

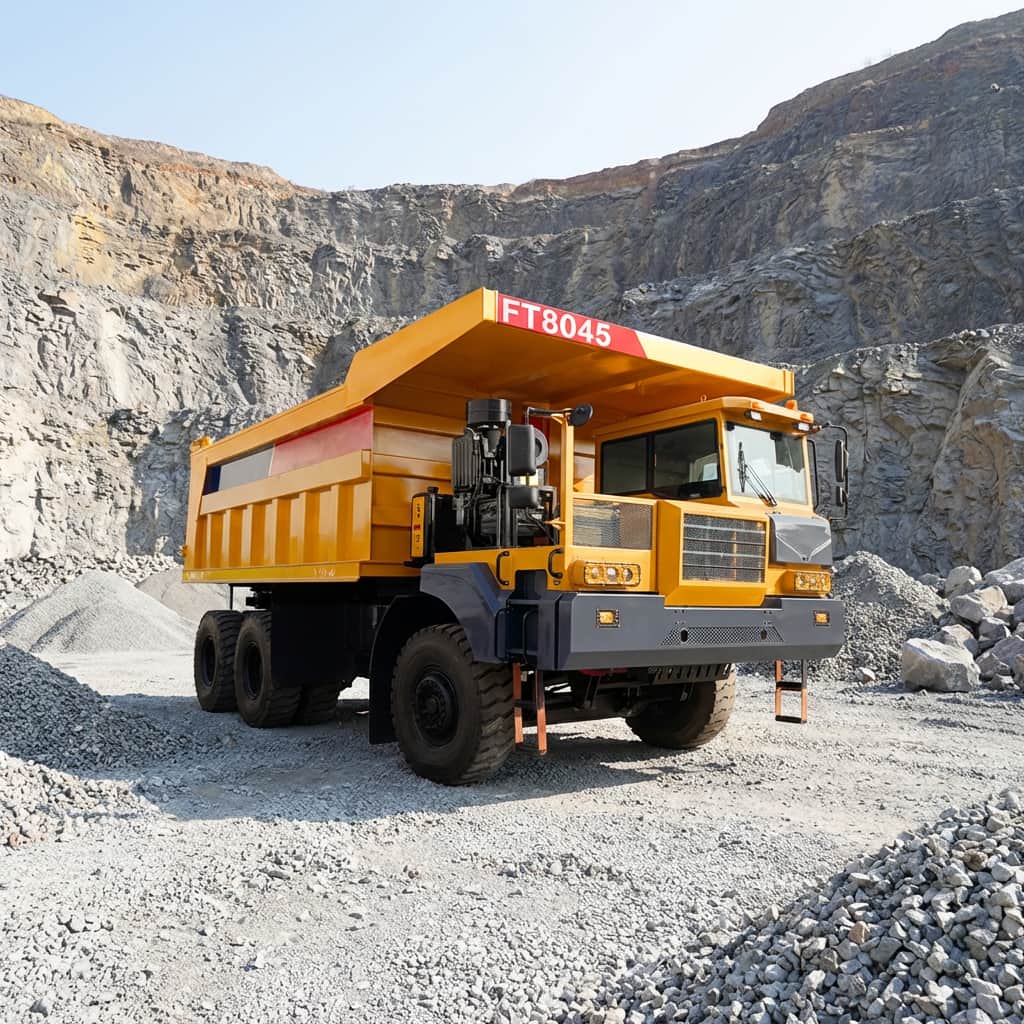

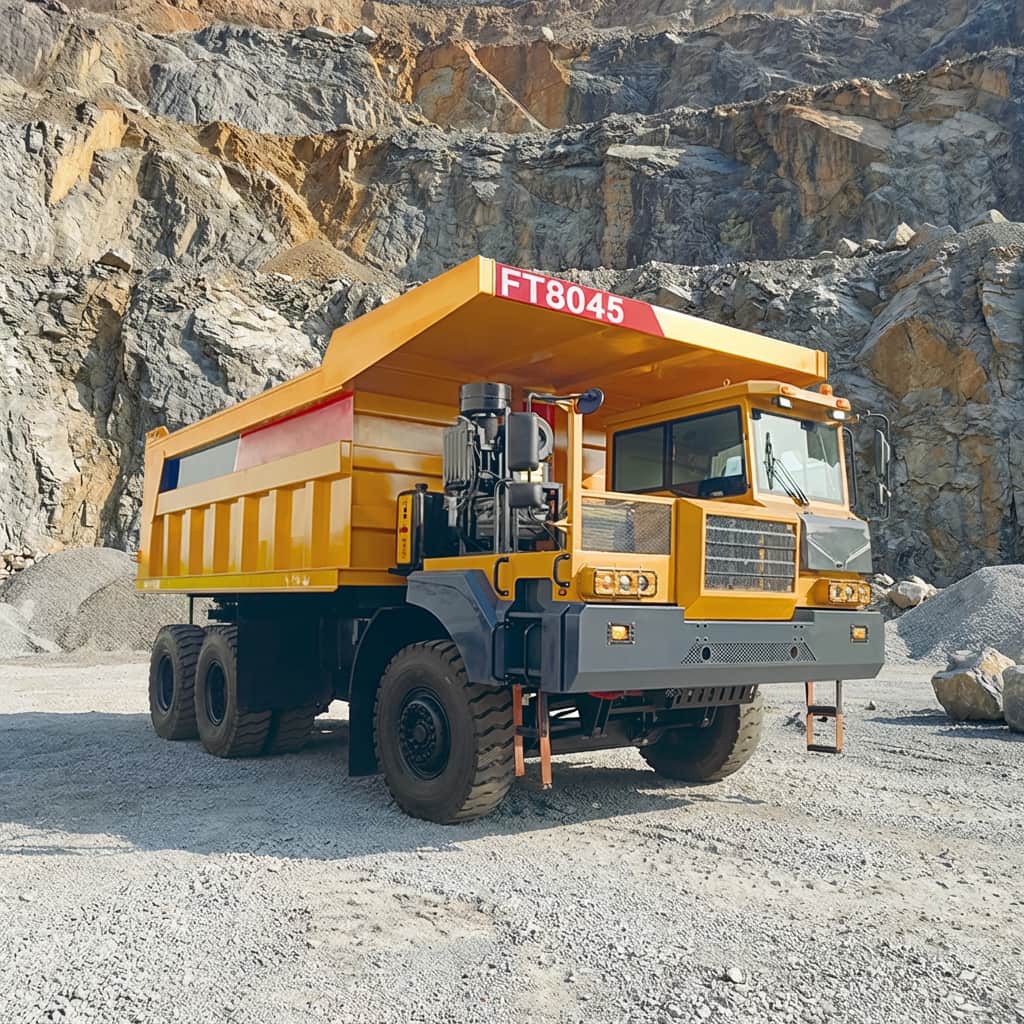

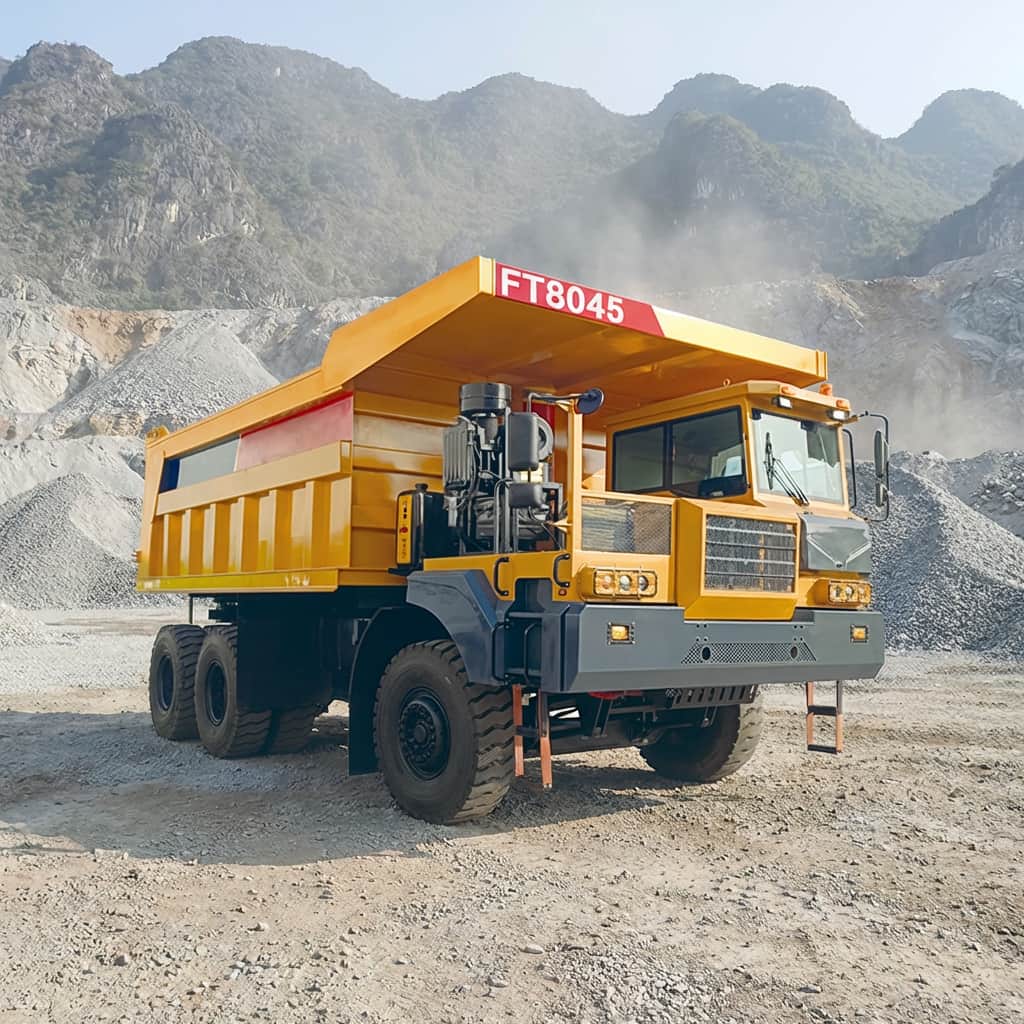

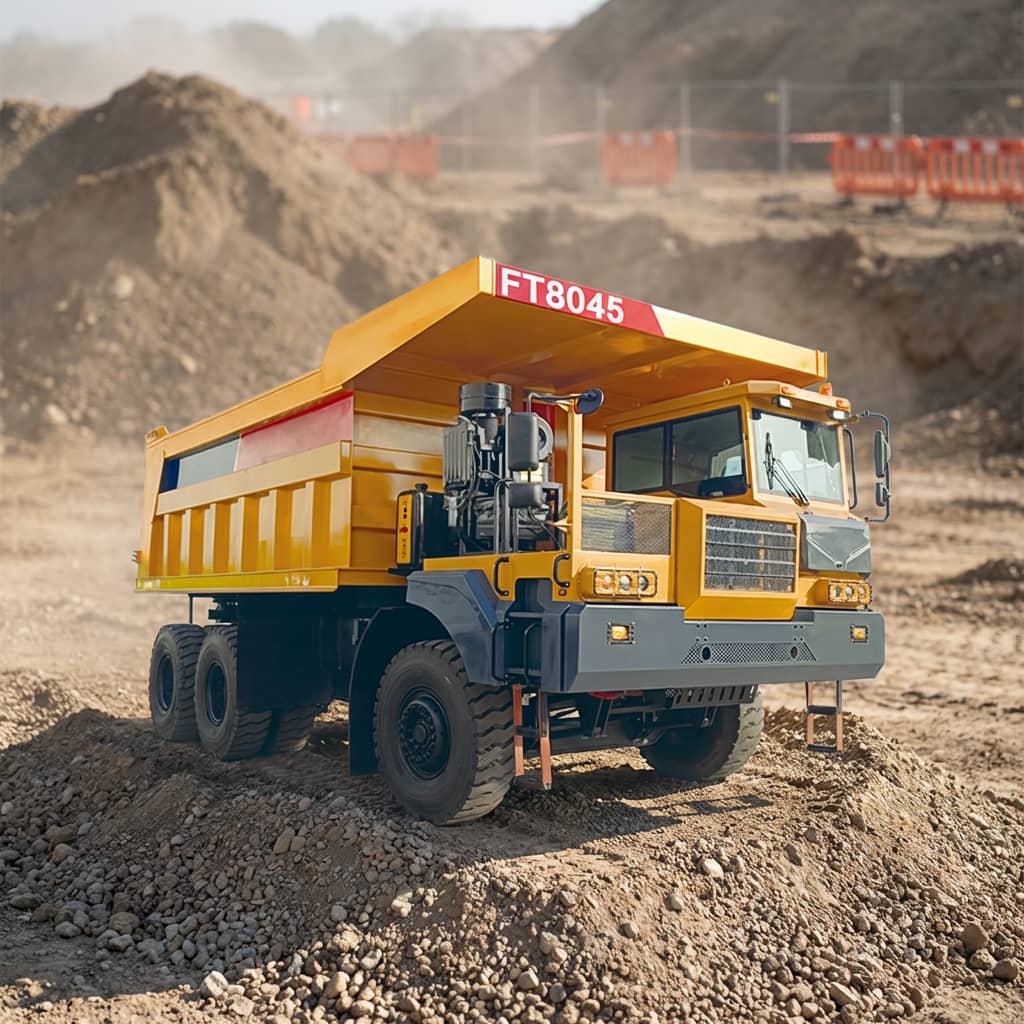

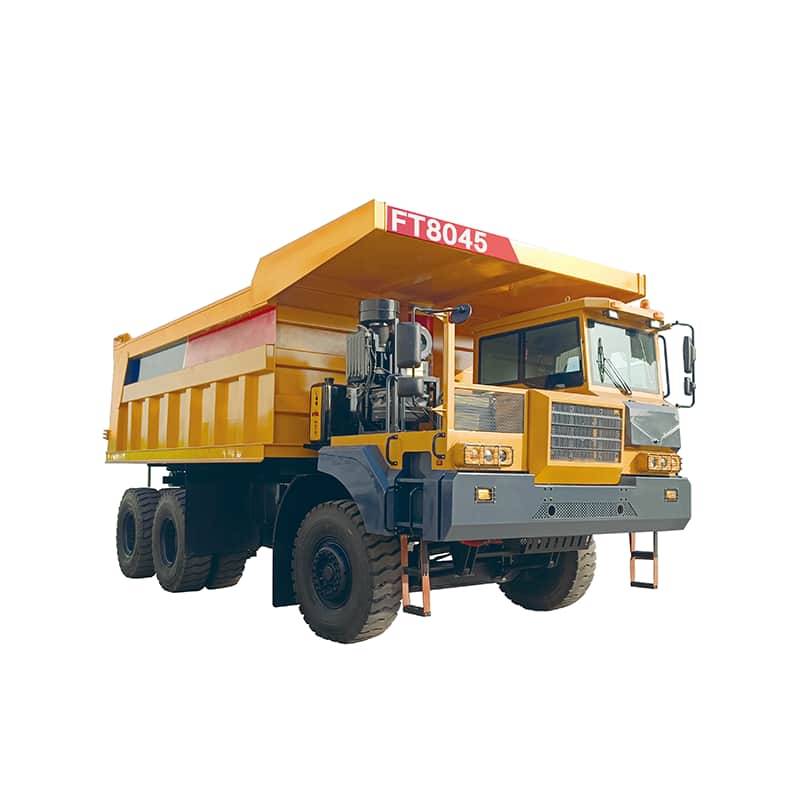

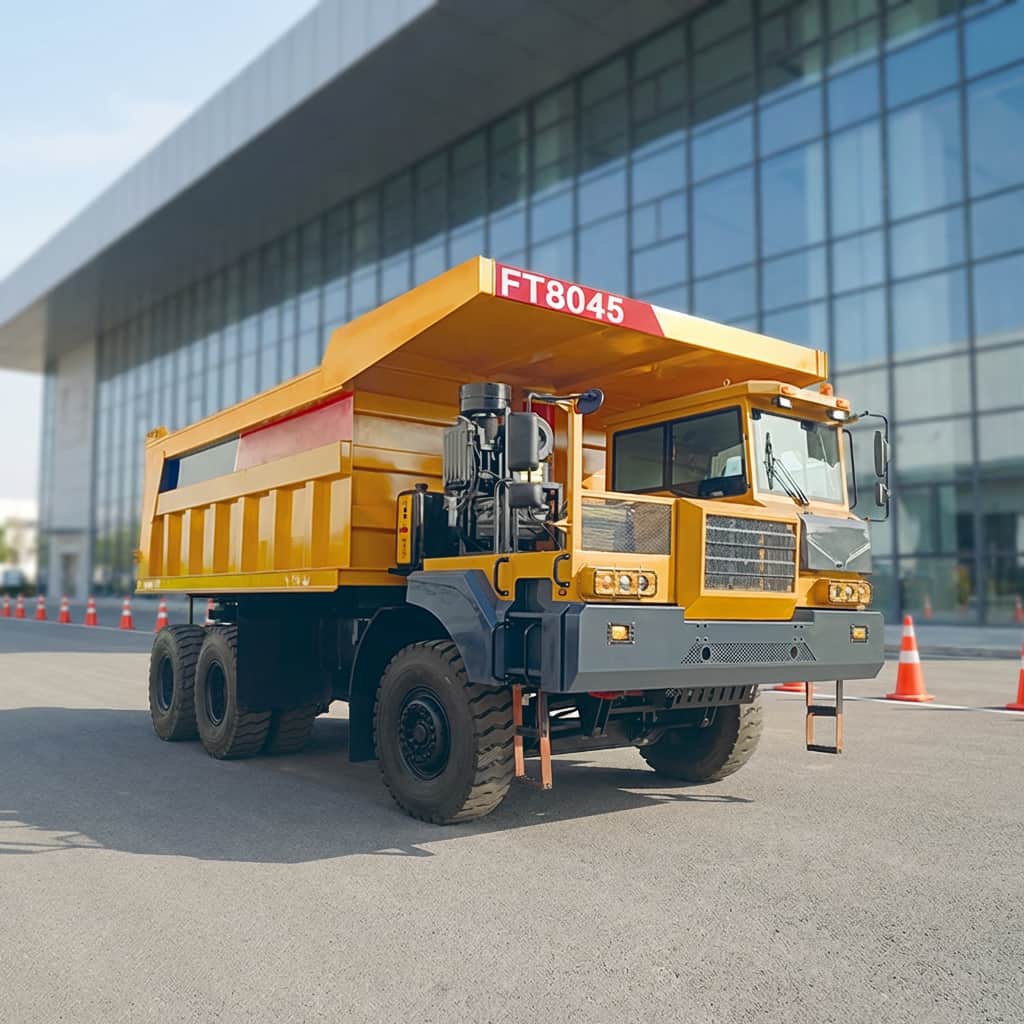

    This large mining dump truck is designed for heavy-duty work, with a flip-type wide-body left-hand drive cab. Powered by 420hp Weichai WD12G420E211 engine and matched with Fast 7DS220 transmission, it has strong power. It adopts Shashi Jiulong steering gear, FMAN cast steel axles, 14.00-25PR mining tires and SORL braking system. Its frame is 480*140 welded type, cargo box (5600*2850*1550mm) is Q345 material. Curb weight 22000kg, rated load 43000kg, top speed 42km/h, max climbing 40%, suitable for harsh mining scenarios.
