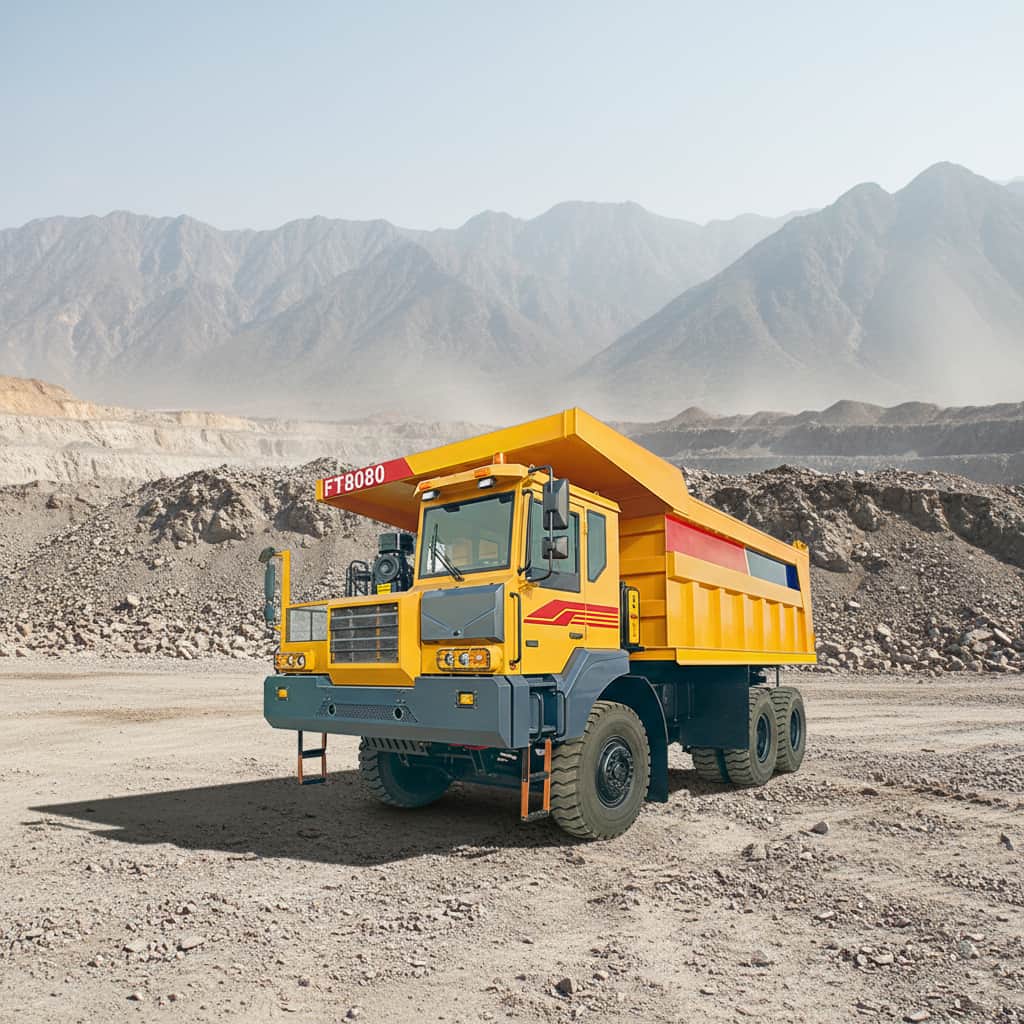

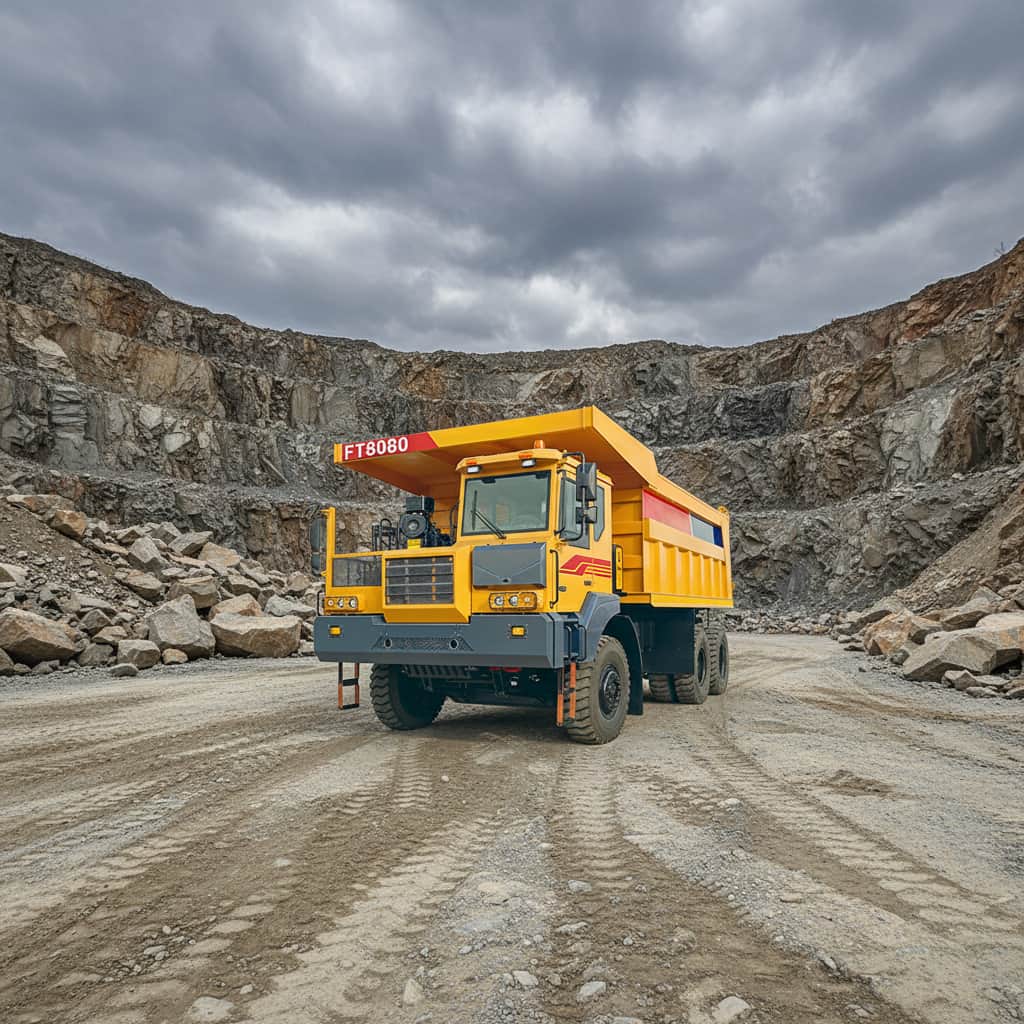

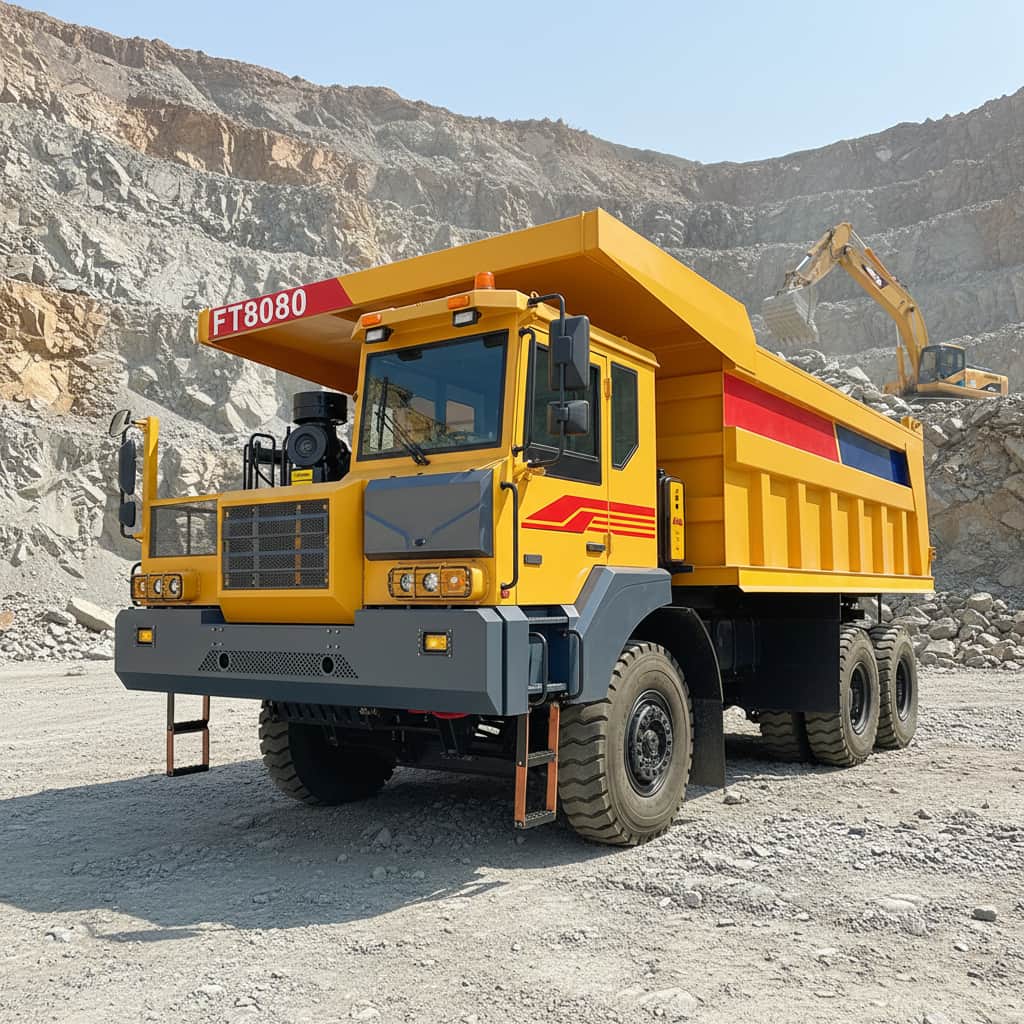

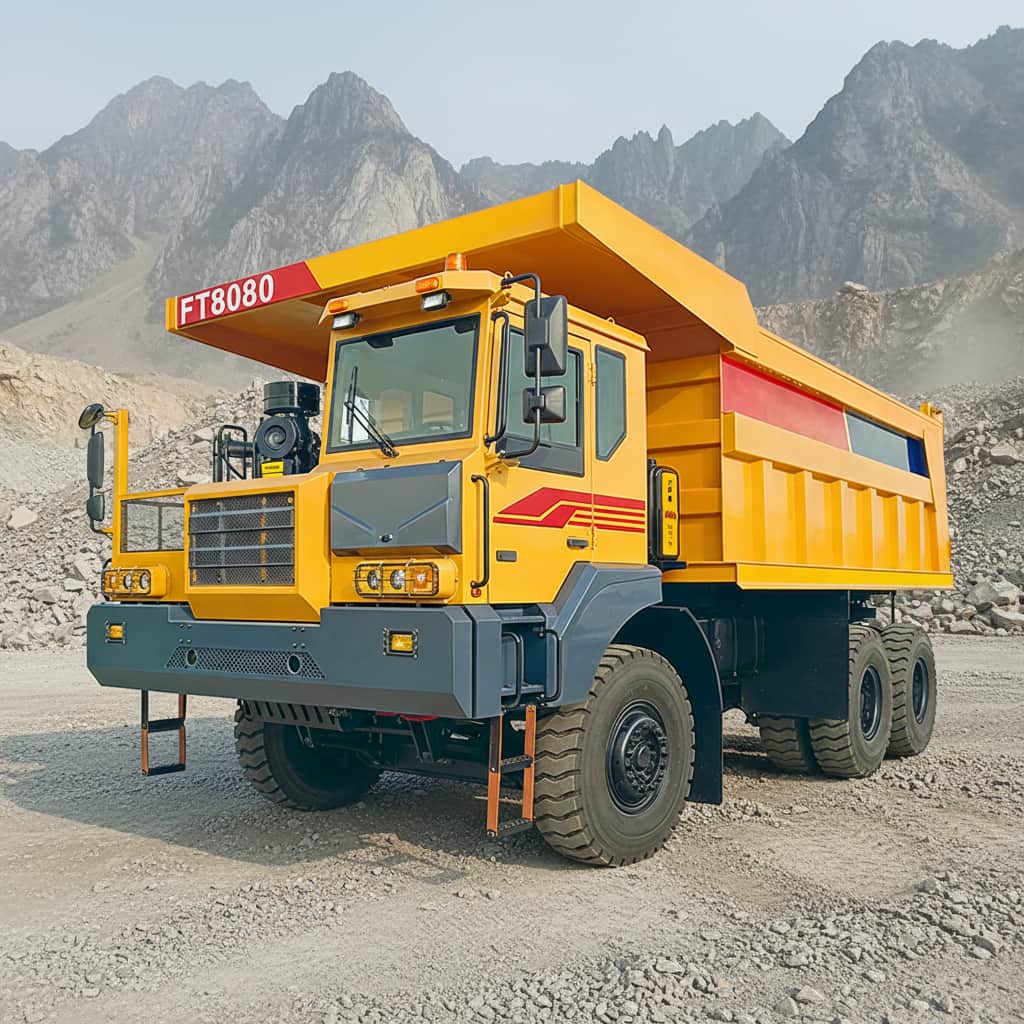

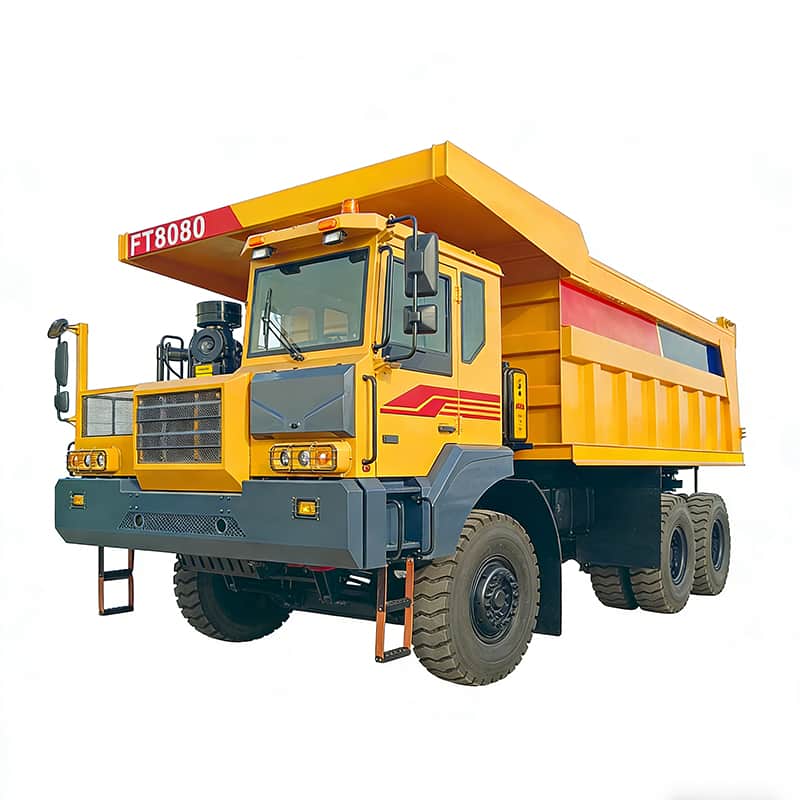

FT8080 off-road wide-body dump truck
Order Online Contact Us
Recommended :
FT8060 off-road wide-body dump truck

FT8095 off-road wide-body dump truck

FT8080 off-road wide-body dump truck

Specifications
Benefits
Option
Attachments

驾驶室Driving Cab:	矿用宽体驾驶室（左驾）Reversible wide-body offset cab （Left hand）
发动机Engine Type/ Horsepower:	潍柴420马力发动机 WeiChai WP12G420 E211
变速箱	法士特/ FAST 7DS220
Transmission Type:	法士特/ FAST 7DS220
转向器	伊顿全液压转向系统EATON Full hydraulic power steering engine
Steering Engine:	伊顿全液压转向系统EATON Full hydraulic power steering engine
前/后车桥	FMAN20吨前桥35吨中后桥
Front/rear axle:	PX20Tcasting steel front axle/PX 35T casting dual reduction middle/rear axle
车架	焊接式半刚性车架 450*140
Frame:	Welded Semi-rigid cube type frame 450*140
货箱尺寸	585032001750
Inner dimension of body(mm):	585032001750
上装描述	Q355钢板，底板16mm边板12mm，海沃179液压系统，矿用方箱;
Description:	Q355 Bottom board 16mm side board 12mm,Front hoisting,Cylinder Hyva191 ,Mining cargo body;
轮胎Tyre:	14.00R25 钢丝胎mining tyre
悬挂	全焊接平衡悬挂，加强可拆卸平衡轴
Front/rear suspension:	Whole welded equalizing suspension, reinforced removable equalizing shaft
板簧	前：油气弹簧后：钢板弹簧
Leaf spring for front, middle, rear axle:	Front: Oil-gas spring Rear:1203211
制动系统	瑞立制动系统
Breaking system:	SORL system,Front / mid / rear axle drum brake
Others:	Oil-bath filter, exhaust braking,heater for base plate,Stone remover,Chassis protection,Relay waterproof protection, Rear view mirror reinforcement,LED Sidelight and taillight,backup camera,Centralized lubrication system
	30000
Curb Weight(kg):	30000
额定载质量	60000
Rated load(kg):	60000
总质量	90000
Rated total weight(kg):	90000
外形尺寸	910034504080
Overall Dimension(mm):	910034504080
最大速度	42
Max speed(km/h):	42
最小离地间隙	380
Min ground clearance(mm):	380
最小转弯半径	≤12
Min turning radius(m):	≤12
最大爬坡度	30
Max gradeability(%):	30
轴距	3800+1560
Axle base(mm):	3800+1560
前后轮距	Front2792, Rear 2526
Wheel span (front /rear)(mm):	Front2792, Rear 2526
油箱	600L Steel oil tank
Oil tank Capacity(L):	600L Steel oil tank

This large mining dump truck is designed for heavy-duty work, with a flip-type wide-body left-hand drive cab. Powered by 420hp Weichai WD12G420E211 engine and matched with Fast 7DS220 transmission, it has strong power. It adopts Shashi Jiulong steering gear, FMAN cast steel axles, 14.00-25PR mining tires and SORL braking system. Its frame is 480*140 welded type, cargo box (5600*2850*1550mm) is Q345 material. Curb weight 30000kg, rated load 80000kg, top speed 42km/h, max climbing 40%, suitable for harsh mining scenarios.
