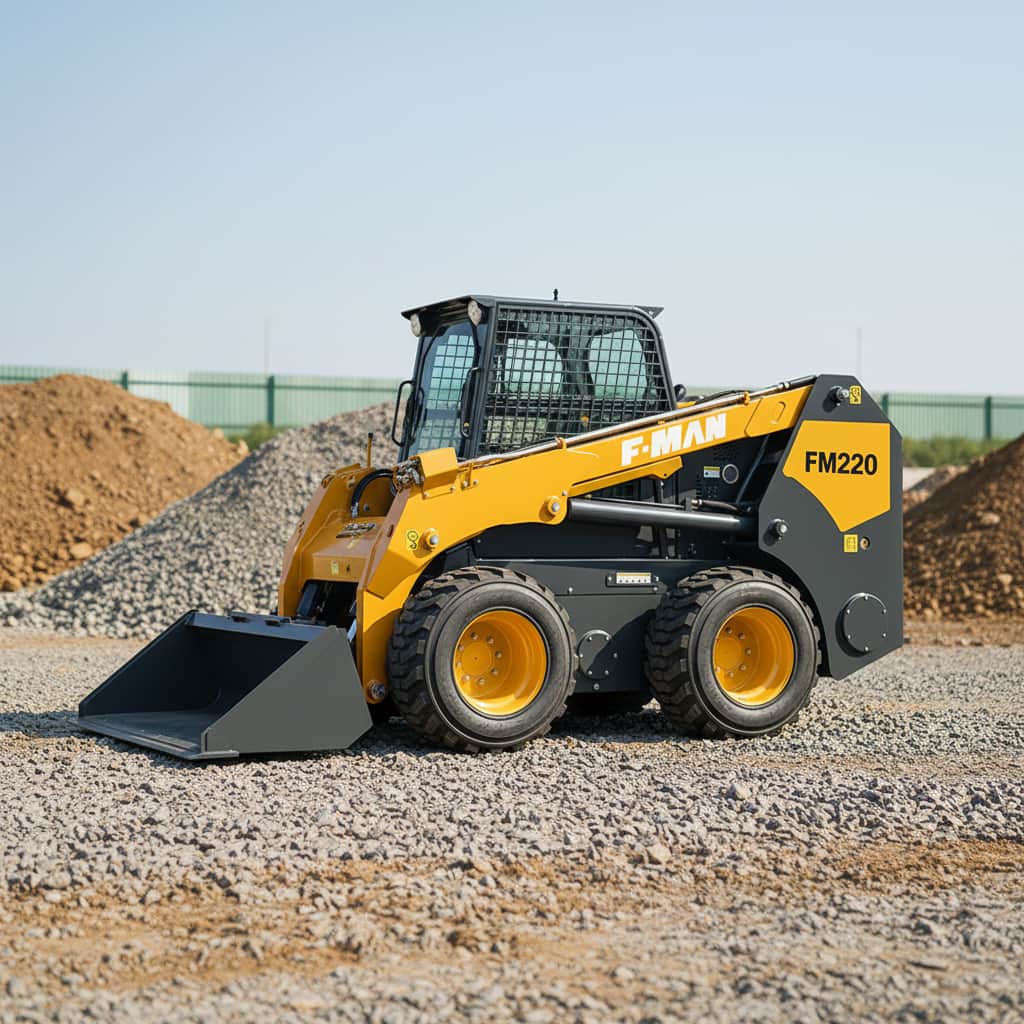

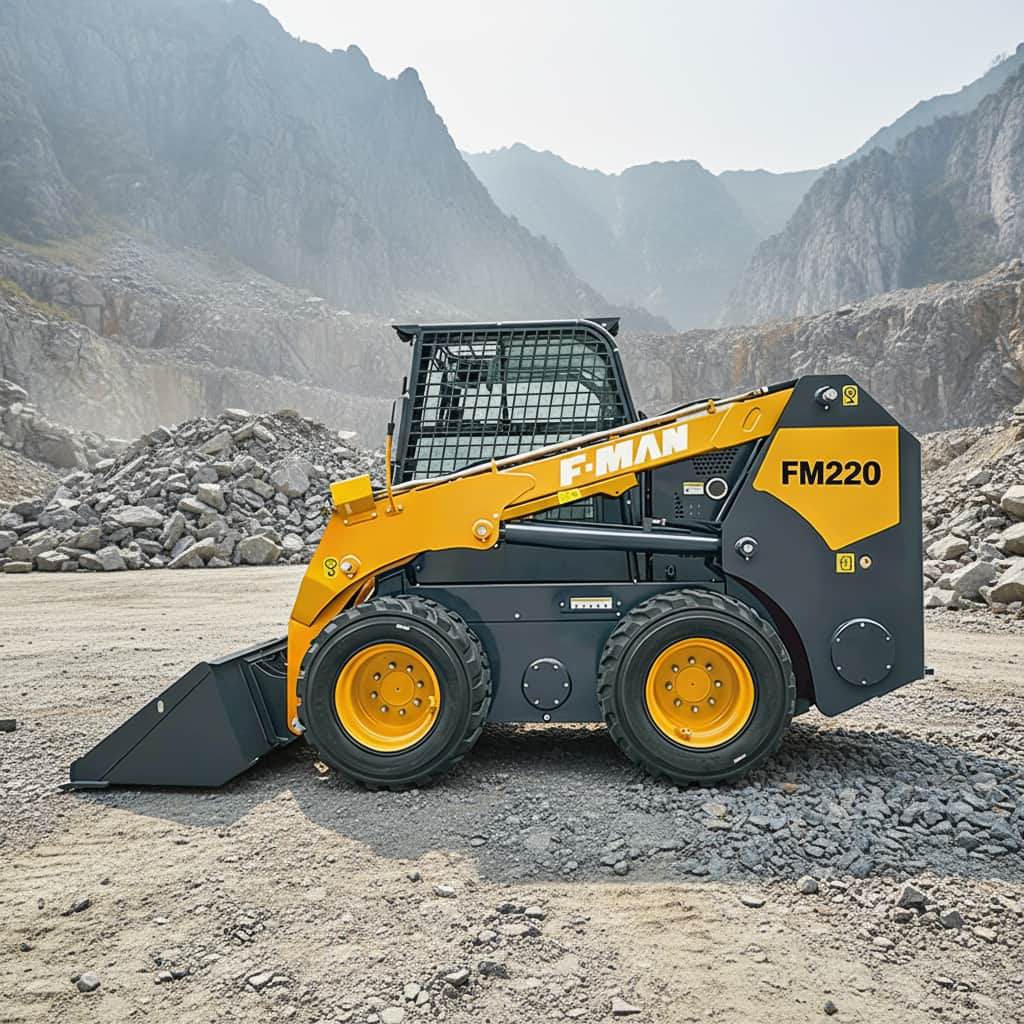

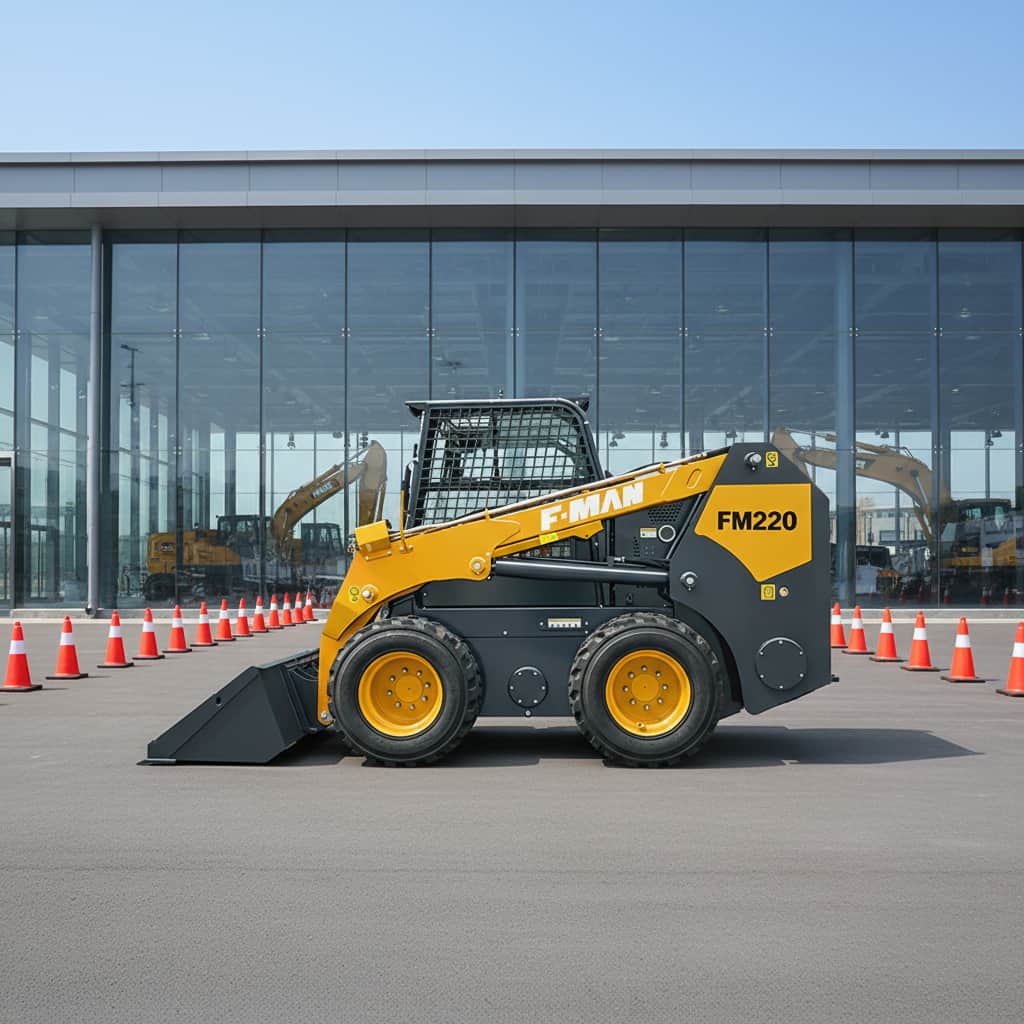

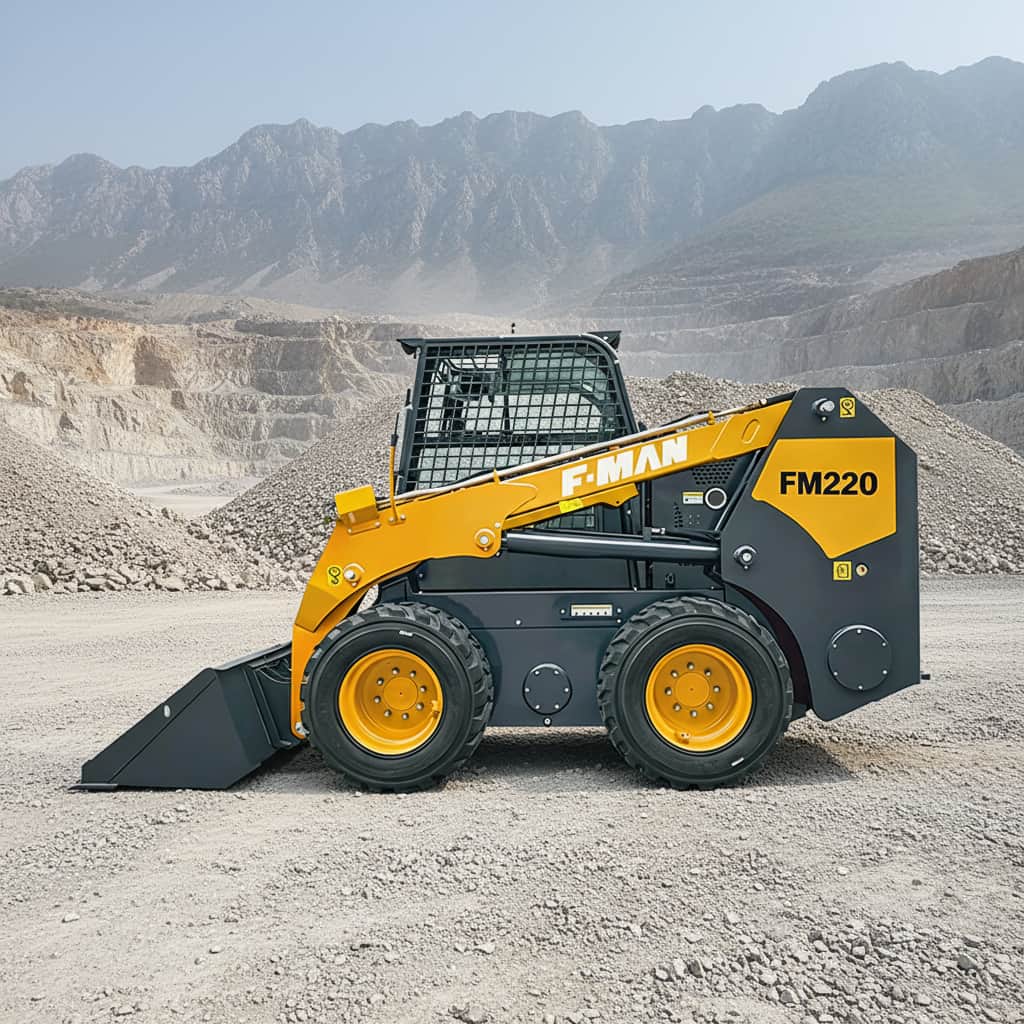

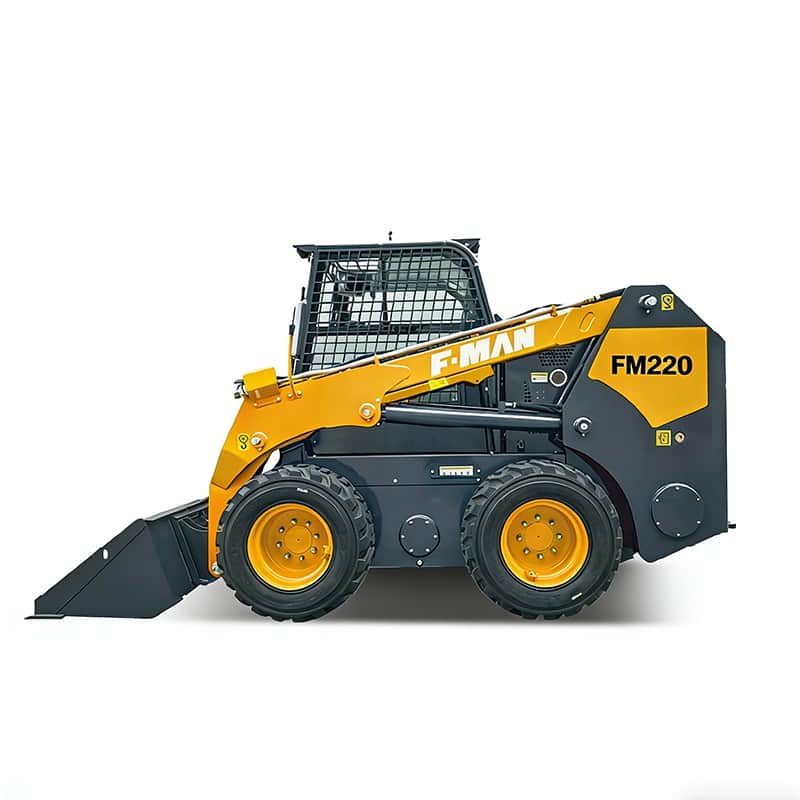

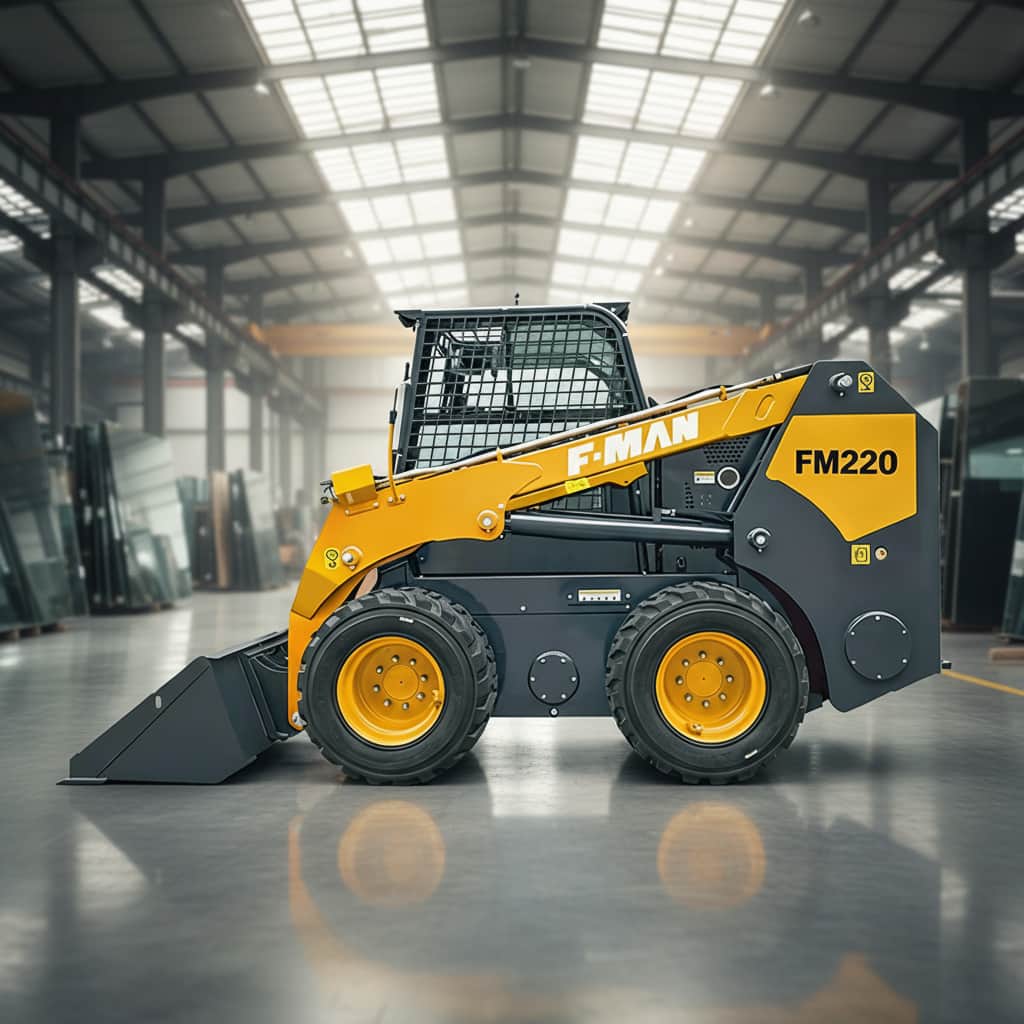

Name: FM220 Skid Steer Loader
Brand: FMAN

Products

Skid Steer Loader

Skid Steer Loader
FM220 Skid Steer Loader
Order Online Contact Us
Recommended :
CSS550 Skid Steer Loader

FM820T Skid Steer Loader

FM220 Skid Steer Loader

Specifications
Benefits
Option
Attachments

TECHNICAL PARAMETERS		Unit	FM220
BASIC	Operating Weight	kg	1640
	Rated Payload	kg	344
	Bucket Capacity	m³	0.15
	Tipping Load	kg	720
	Breakout Force	kN	8.3
	Traction Force	kN	11.8
	L×W×H	mm	2675×980×1840
ENGINE	Engine Model		Xinchai 3B11×41
	Rated Power	kW	18.5kW/3000rpm
	Displacement	L	1.123
	Fuel Consumption		245g/kw.h
	Stroke	mm	78.4
	Bore	mm	78
	Emission Standard		National IV
HYDRAULI C SYSTEM	Hydraulic Flow-Standard		60L/min ·2200rpm
	Type		Pilot control
	Hydraulic Pressure-Standard	MPa	21
	Hydraulic Flow-High Flow
	Loader Hydraulic Pressure	MPa
DRIVE TRAIN	Travel Speed-F&R	km/h	9.5
DRIVE TRAIN	Tyre		6.5-10/5.00
ELECTRIC	Voltage	V	12
ELECTRIC	Capacity	Ah	120
SERVICE REFILL CAPACITY	Travelling Motor Displacement		245cc/r
	Cooling System	L	6
	Engine Crankcase	L	5
	Fuel Tank	L	35
	Hydraulic Tank	L	14
DESCRIPTION	Max.Operation Height	mm	3140
	Bucket Pin Height	mm	2371
	Cab Roof Height	mm	1840
	Max.Height at Bucket Leveled	mm	2240
	Length without Attachment	mm	1960
	Length with Standard Bucket	mm	2675
	Dumping Height	mm	1795
	Reach Rollback	mm	540
	Wheelbase	mm	722
	Ground Clearance	mm	145
	Front Turning Radius without Attachment	mm	610
	Front Turning Radius	mm	1935
	Rear Turning Radius	mm	820
	Tail Length	mm	777
	Center Distance between Two Wheels	mm	830
	Bucket Width	mm	980
	Dumping Angle at Max.Height	°	38
	Bucket Angle on Ground	°	28
	Bucket Rollback Angle at Max.Height	°	97
	Start Angle	°	25
OPTIONAL			Cold Start
			Open Cab
			Solid Tyre
			Spiral Drill
			Excavator
			Bevel Sweeper
			Closed Sweeper
			Fork
			Snow Blade
			Snow Blower
			Tree Planter
			Four In One Bucket
			Detachable Bucket Tooth
			Detachable Bucket Blade
			Warm Air Blower

The FM220 is a skid steer loader that combines efficiency, flexibility, and reliability. With a total weight of only 1640 kg, it can handle a working load of 344 kg, allowing for easy operation even in confined spaces.

Equipped with a 0.15 cubic meter bucket and a 3140 mm Operation Height, it can quickly load and transport soil, sand, gravel, and building materials. Powered by a high-performance XINCHAI engine, providing 18.5 kW / 3000RPM, it offers ample power and fuel efficiency to easily complete demanding tasks.

The compact 2675 × 980 × 1840 mm body allows the FM220 to maneuver freely in narrow spaces, warehouses, and landscaping sites, offering flexible operation and high efficiency. Whether for landscaping, industrial handling, or small-scale construction, it is a reliable and capable assistant.
