Name: FM240 Skid Steer Loader
Brand: FMAN

Products

Skid Steer Loader

Skid Steer Loader
FM240 Skid Steer Loader
Order Online Contact Us
Recommended :
FM820T Skid Steer Loader

FM275X Skid Steer Loader

FM240 Skid Steer Loader

Specifications
Benefits
Option
Attachments

TECHNICAL PARAMETERS		Unit	FM240
BASIC	Operating Weight	kg	2900
	Rated Payload	kg	899
	Bucket Capacity	m³	0.48
	Tipping Load	kg	1600
	Breakout Force	kN	20.3
	Traction Force	kN	18.9
	L×W×H	mm	3220×1820×2000
ENGINE	Engine Model		A498BT1-75
	Rated Power	kW	36.7kW/2500rpm
	Displacement	L	3.168
	Fuel Consumption		10.6L
	Stroke	mm	98
	Bore	mm	105
	Emission Standard		TierⅡ
HYDRAULI C SYSTEM	Hydraulic Flow-Standard		74L/min ·2500rpm
	Type		Mechanical
	Hydraulic Pressure-Standard	MPa	21
	Hydraulic Flow-High Flow
	Loader Hydraulic Pressure	MPa
DRIVE TRAIN	Travel Speed-F&R	km/h	11.5
DRIVE TRAIN	Tyre		12-16.5NHS
ELECTRIC	Voltage	V	12
ELECTRIC	Capacity	Ah	120
SERVICE REFILL CAPACITY	Travelling Motor Displacement		9L
	Cooling System	L	12
	Engine Crankcase	L	8
	Fuel Tank	L	83
	Hydraulic Tank	L	65
DESCRIPTION	Max.Operation Height	mm	3750
	Bucket Pin Height	mm	2920
	Cab Roof Height	mm	2000
	Max.Height at Bucket Leveled	mm	2730
	Length without Attachment	mm	2420
	Length with Standard Bucket	mm	3220
	Dumping Height	mm	2260
	Reach Rollback	mm	640
	Wheelbase	mm	1050
	Ground Clearance	mm	210
	Front Turning Radius without Attachment	mm	1200
	Front Turning Radius	mm	2010
	Rear Turning Radius	mm	1520
	Tail Length	mm	960
	Center Distance between Two Wheels	mm	1240
	Bucket Width	mm	1835
	Dumping Angle at Max.Height	°	40
	Bucket Angle on Ground	°	28
	Bucket Rollback Angle at Max.Height	°	94
	Start Angle	°	27
OPTIONAL			Cold Start
			Open Cab
			Solid Tyre
			Centralized Pressure Measurement
			Rearvew MirRor Heating Function
			Warm Air Blower
			Excavator
			Bevel Sweeper
			Tree Planter
			Four In One Bucket
			Detachable Bucket Tooth
			Detachable Bucket Blade
			Spiral Drill
			Closed Sweeper
			Snow Blade
			Fork

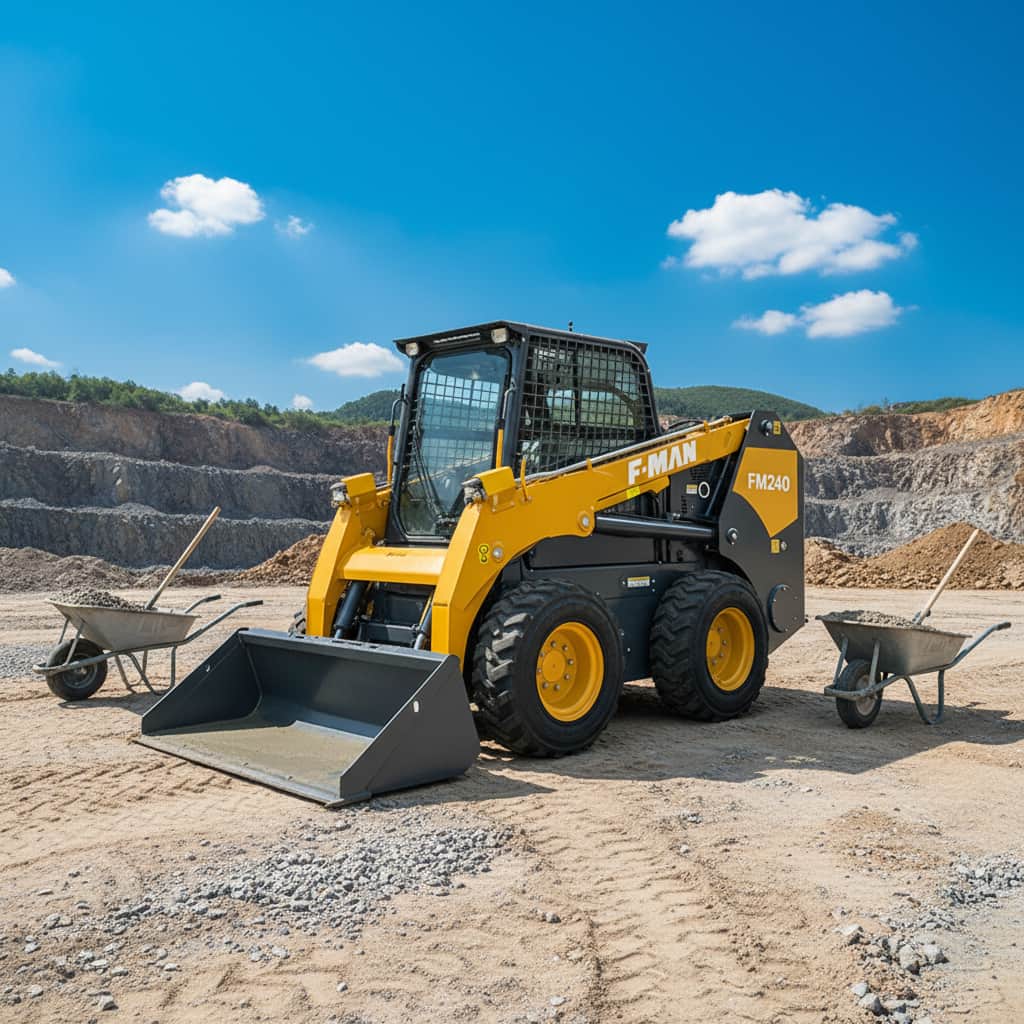

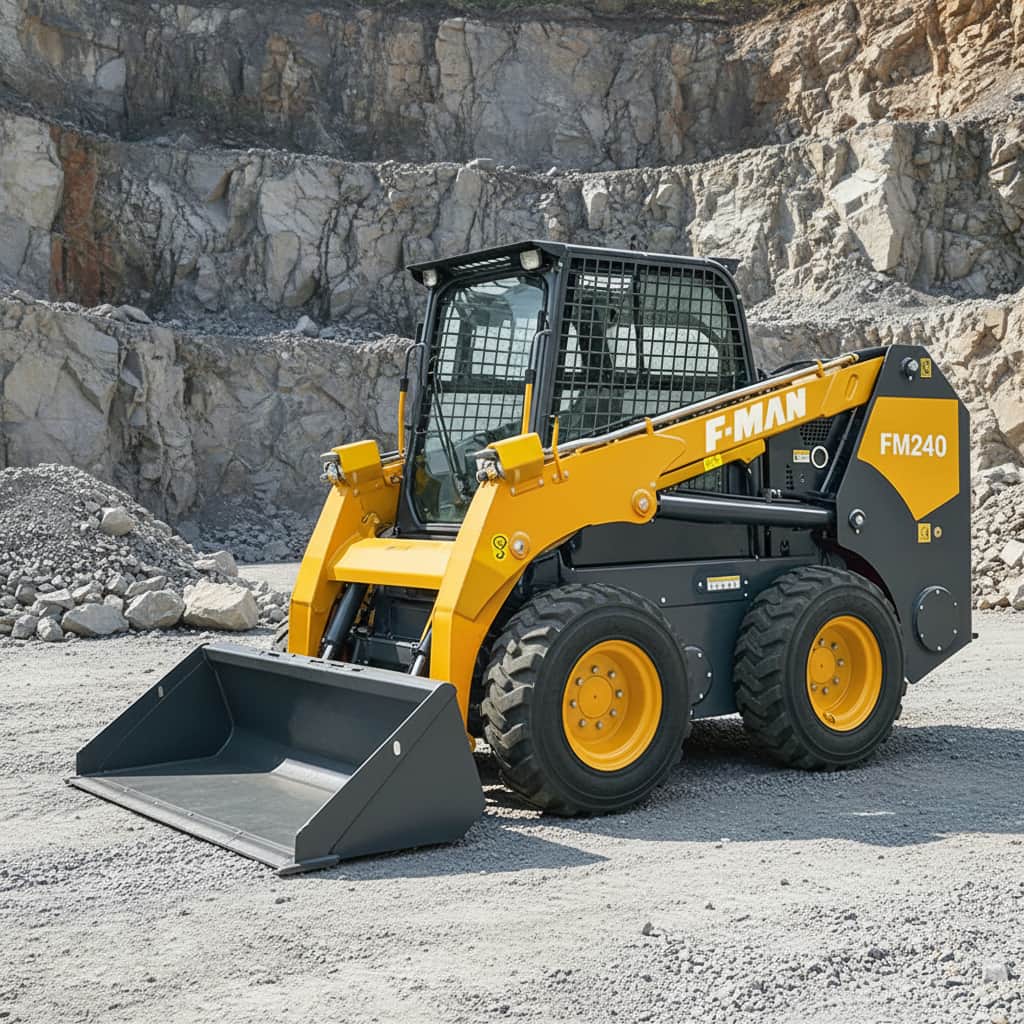

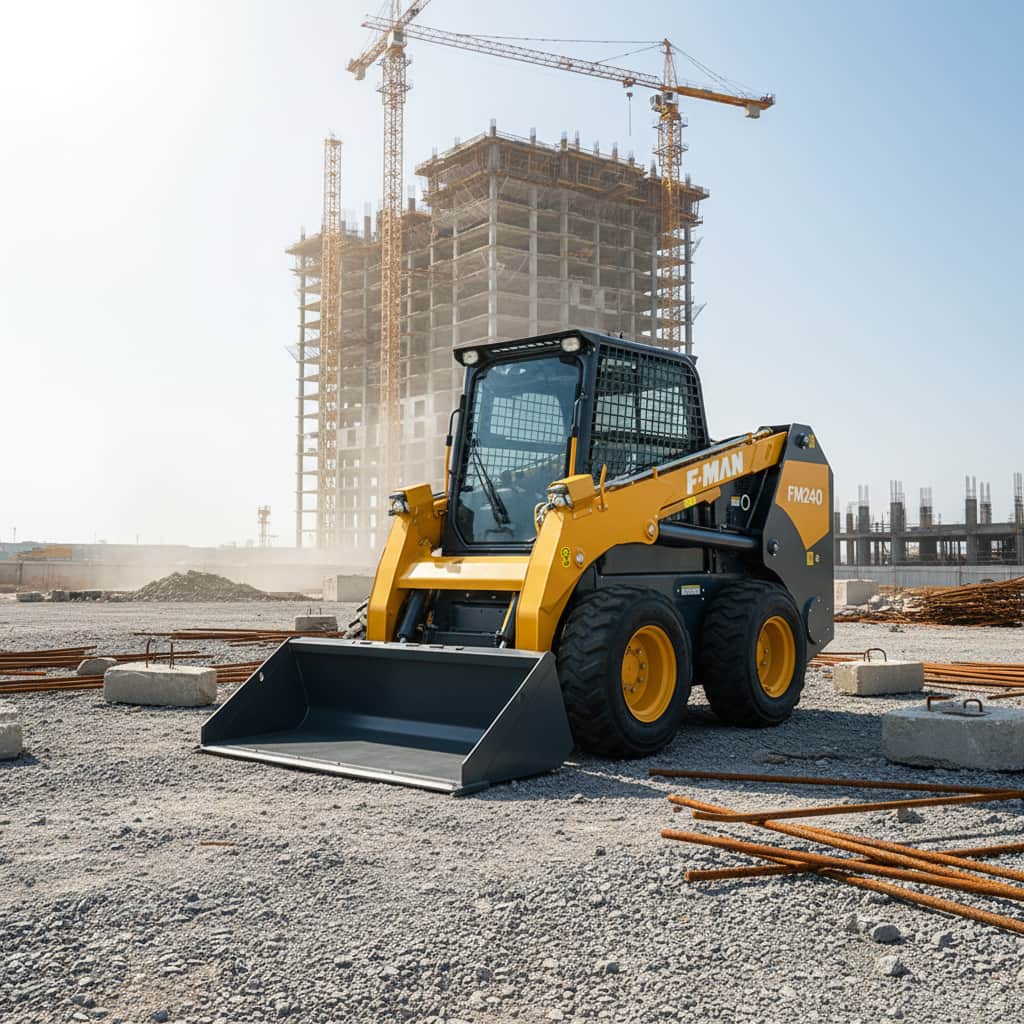

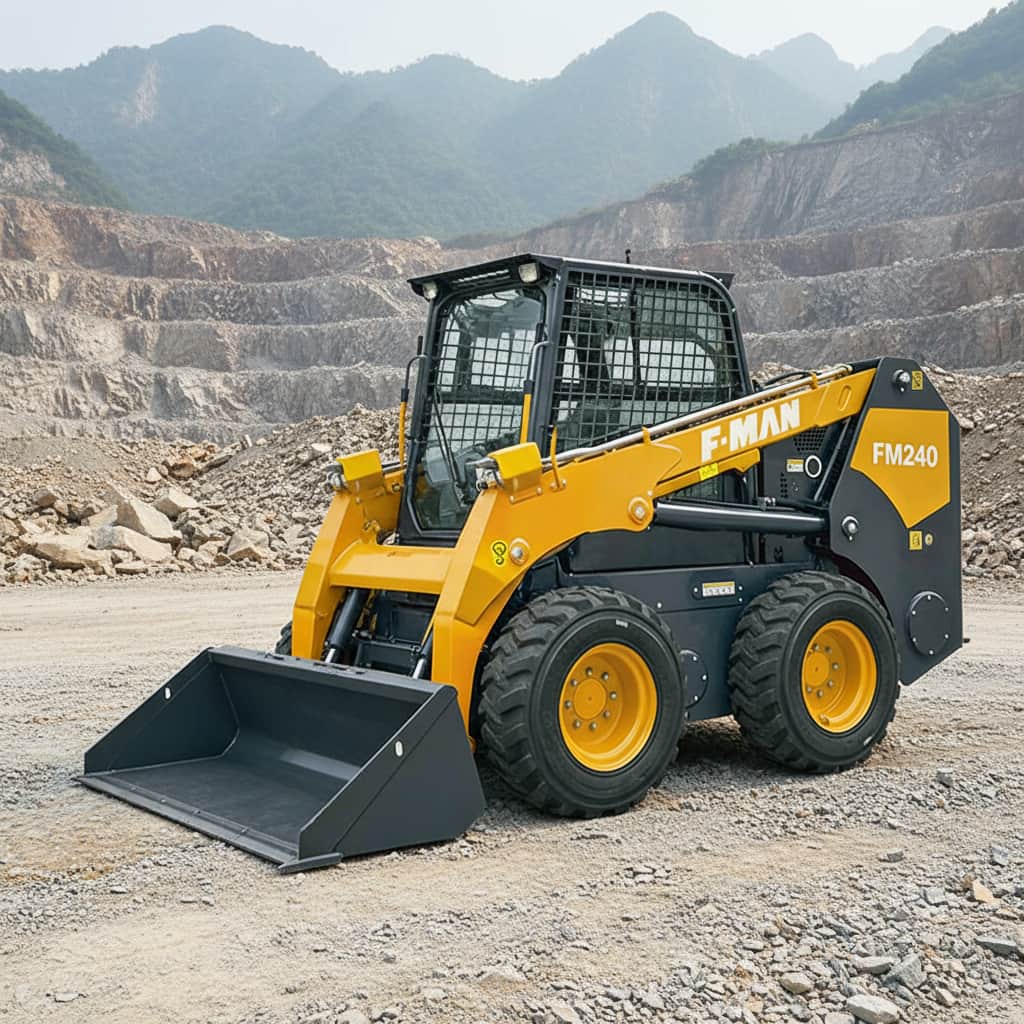

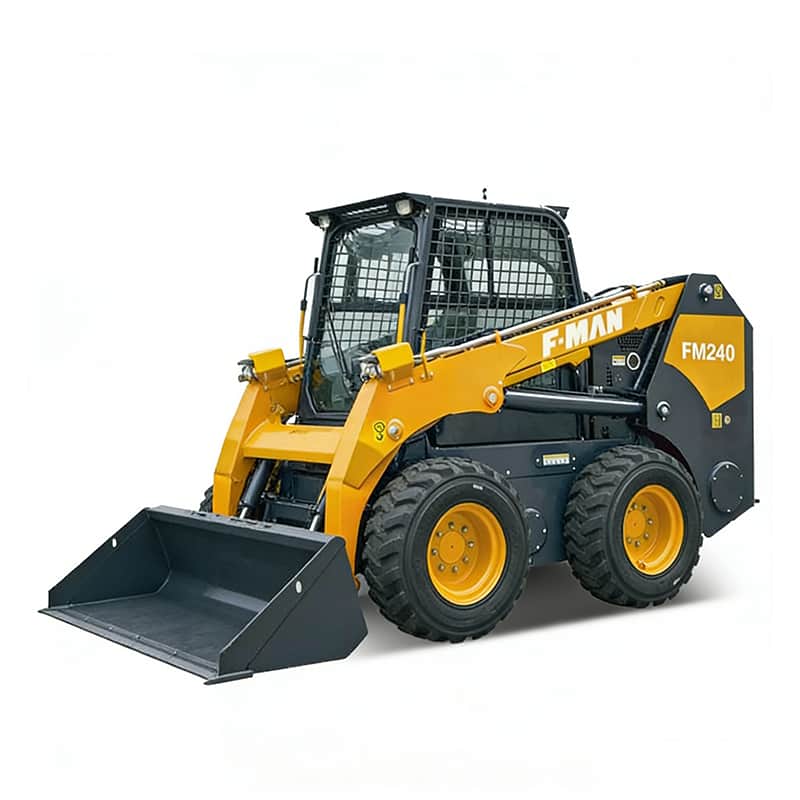

The FM240 is a skid steer loader that combines efficiency, flexibility, and reliability. With a total weight of only 2900 kg, it can handle a working load of 899 kg, allowing for easy operation even in confined spaces.

Equipped with a 0.48 cubic meter bucket and a 3750 mm Operation Height, it can quickly load and transport soil, sand, gravel, and building materials. Powered by a high-performance engine, providing 36.7kW , it offers ample power and fuel efficiency to easily complete demanding tasks.

The compact 3220×1820×2000 mm body allows the FM240 to maneuver freely in narrow spaces, warehouses, and landscaping sites, offering flexible operation and high efficiency. Whether for landscaping, industrial handling, or small-scale construction, it is a reliable and capable assistant.
