Skid Steer Loader

    FM235XFM260X
    WheeledWheeled
    Common parameters

    Overall size with bucket (mm)3525*1730*20113805*1880*2125
    Overall size excluding bucket (mm)2765*1676*20113035*1850*2125
    Working height-full lift (mm)39704000
    Articulation height -full liftmm30213100
    Discharge height-full liftmm22702250
    Discharge distance-full liftmm658490
    Standard bucket66"72"
    Flat bucket capacity(m³)0.40.44
    Overall weight(kg)29883482
    Rated load(kg)8001100
    Tyre size10-16.512-16.5
    Track widthmm//
    Maximum driving speedkm/h12.612.5
    Dual speed driving speedkm/h/12/23optional
    Engine brandYANMARYANMAR
    Engine powerkW/HP34.6/46(National III)
    35.5/47(Euro 5/EPA)
    61.3/82(National III)
    53.7/71(Euro 5/EPA)
    Hydraulic flowL/min8085/135optional
    QTY2 Units/20GP
    4 Units/40GP
    1 Unit/20GP
    3 Units/40GP

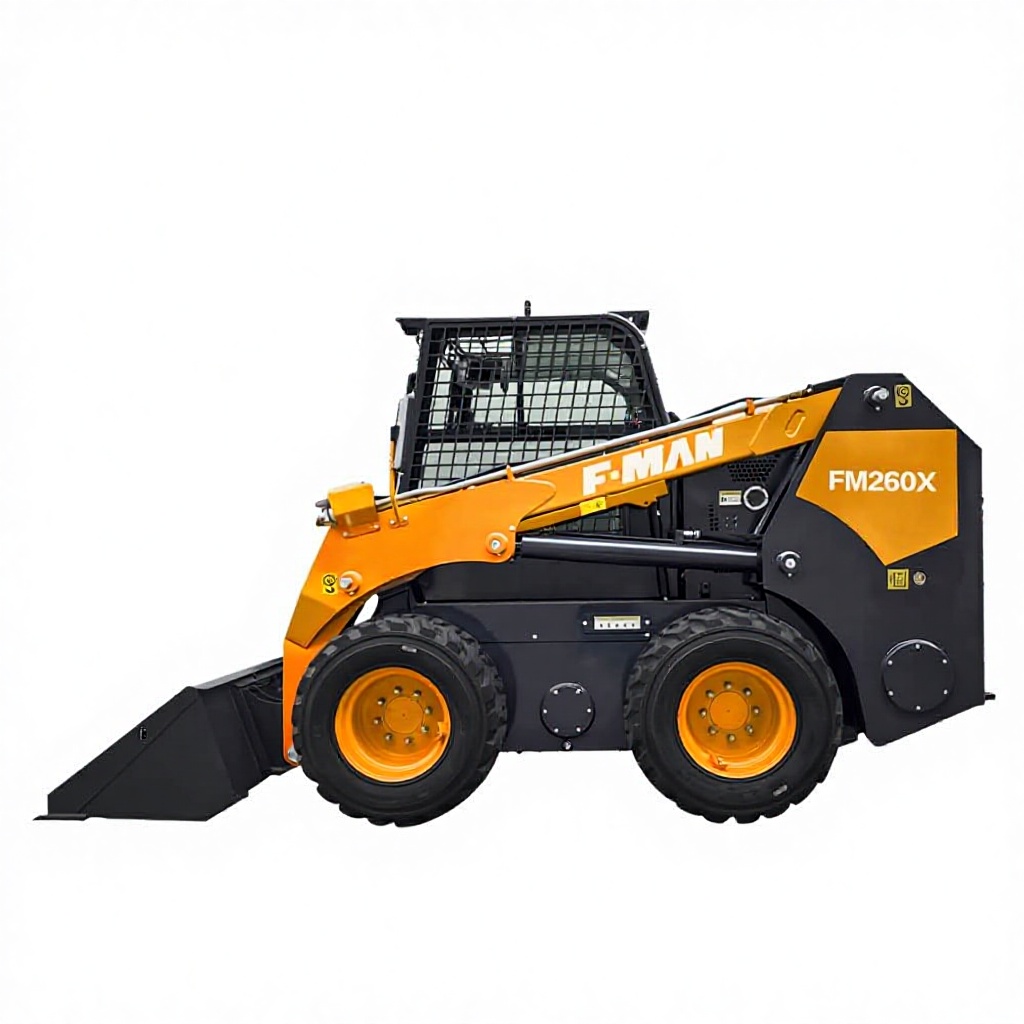

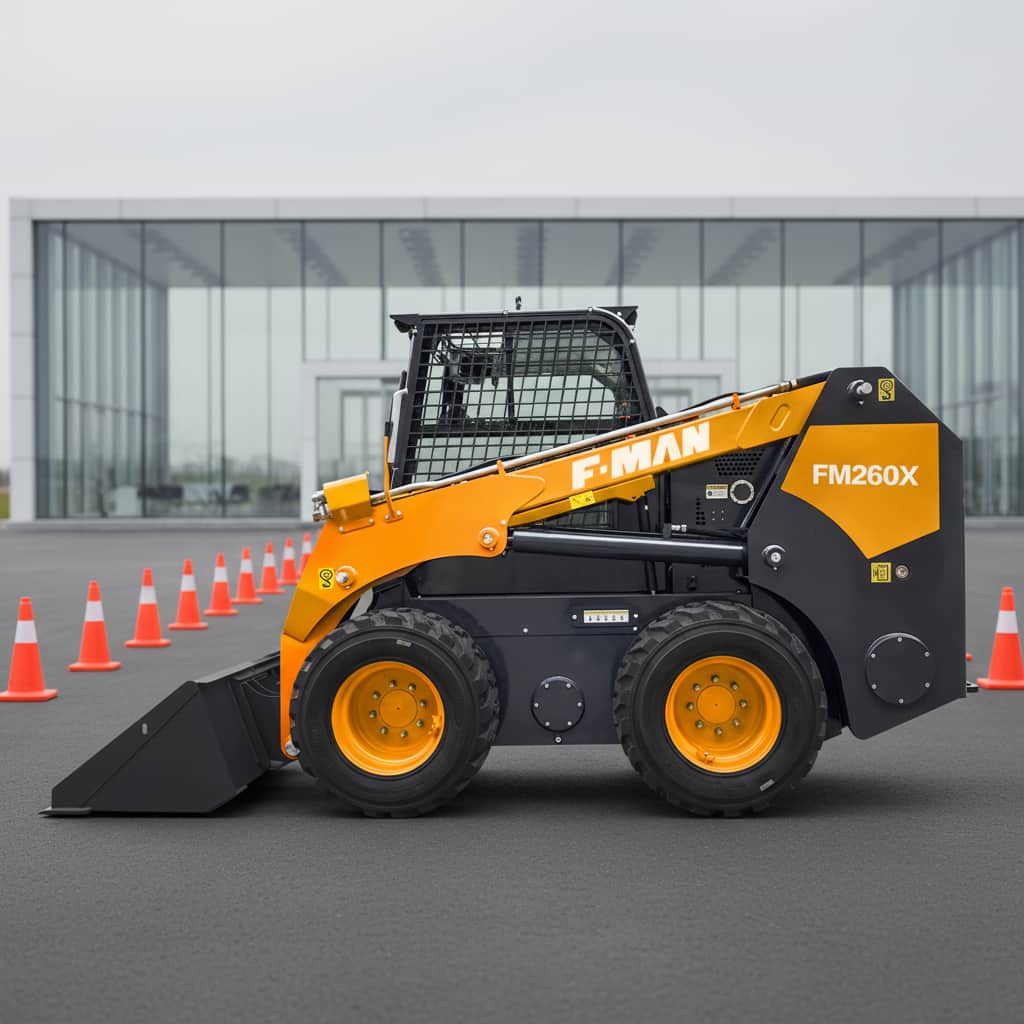

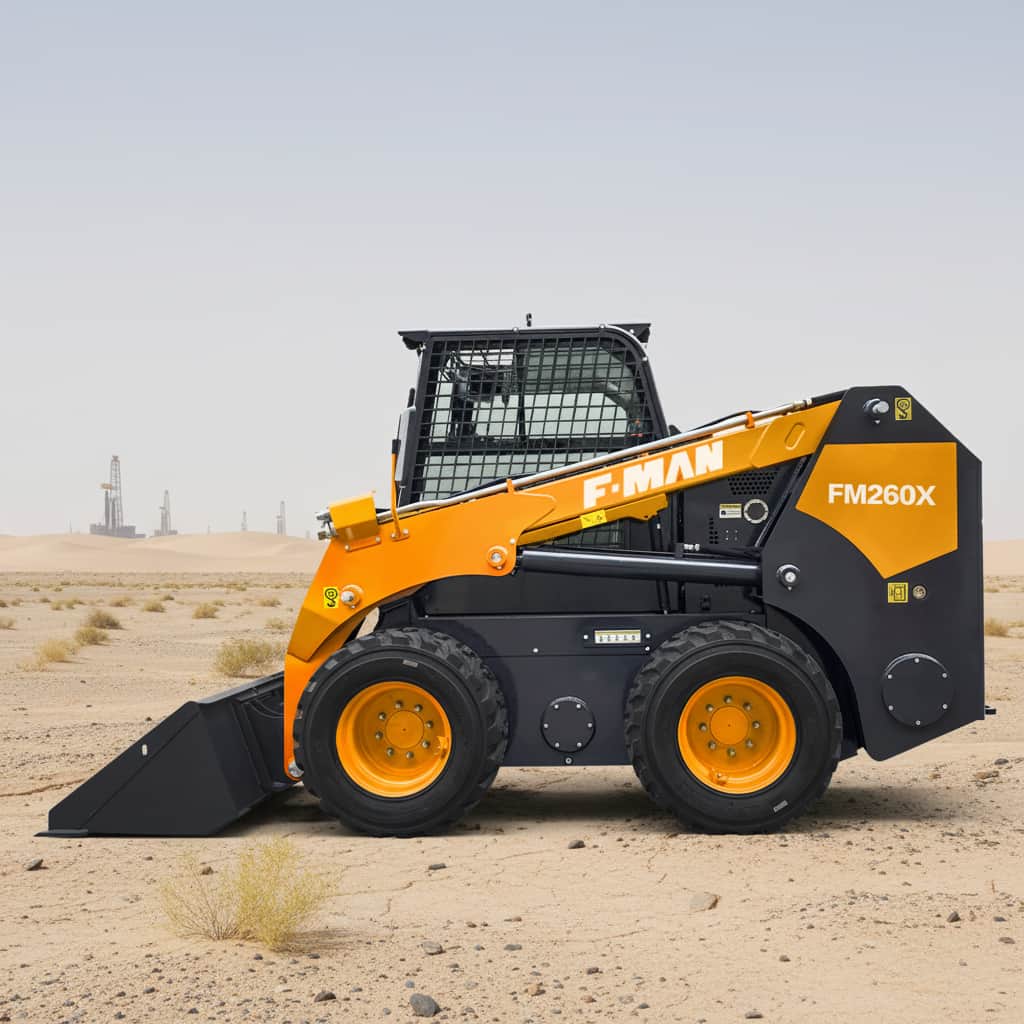

    The FM260X skid steer loader is a multi-functional engineering equipment designed for medium to high-intensity working conditions, combining high load capacity, excellent stability, and flexible maneuverability. It is suitable for various applications such as construction sites, industrial handling, and municipal operations.

    With an operating weight of 3482 kg and a rated load of up to 1100 kg, it has ample working capacity to efficiently complete various material loading and handling tasks. Equipped with a 0.44 m³ bucket and a 2250 mm discharge height, it ensures smooth loading and unloading operations and higher work efficiency.

    In terms of power, the FM260X is equipped with a high-performance YANMAR engine, with optional 61.3 kW / 82 HP (National III) or 53.7 kW / 71 HP (Euro 5 / EPA) configurations, providing strong and stable power output while also meeting fuel economy and emission regulations.

    The compact dimensions of 3805 × 1880 × 2125 mm allow the equipment to have good passability and maneuverability even in confined spaces. Combined with the skid steer system, it has a small turning radius and quick response, significantly improving work efficiency in complex working conditions.

    The FM260X supports quick switching of various attachments and can be widely used in construction, landscaping, agricultural operations, and industrial material handling. It is an ideal choice that combines efficiency, reliability, and versatility.
