Skid Steer Loader
    Common parameters
    Overall size with bucket (mm)3815*1880*2122
    Overall size excluding bucket (mm)3045*1852*2122
    Working height-full lift (mm)4354
    Articulation height -full liftmm3404
    Discharge height-full liftmm2664
    Discharge distance-full liftmm392
    Standard bucket72"
    Flat bucket capacity(m³)0.44
    Overall weight(kg)3732
    Rated load(kg)1400
    Tyre size12-16.5
    Track widthmm/
    Maximum driving speedkm/h/
    Dual speed driving speedkm/h10/20
    Engine brandWEICHAI
    Engine powerkW/HP74/100(National III)
    Hydraulic flowL/min85/135

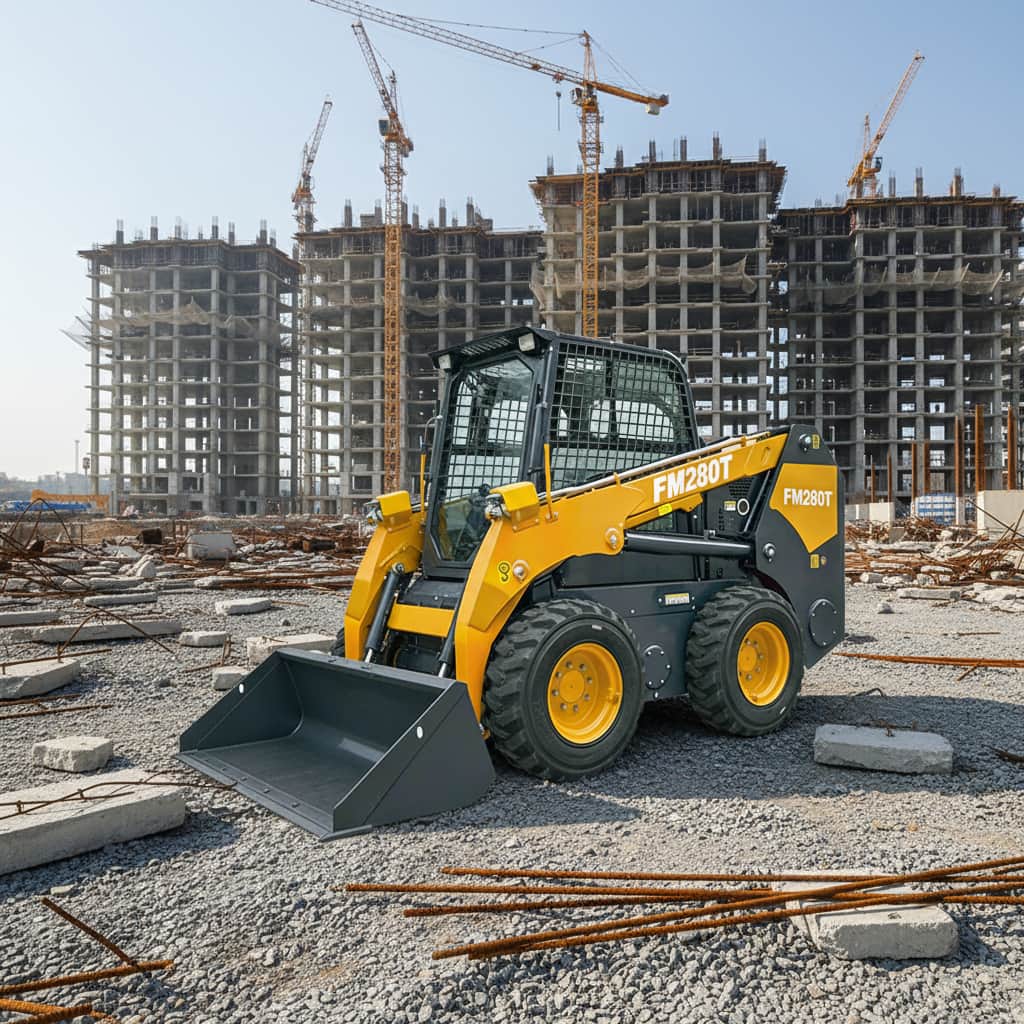

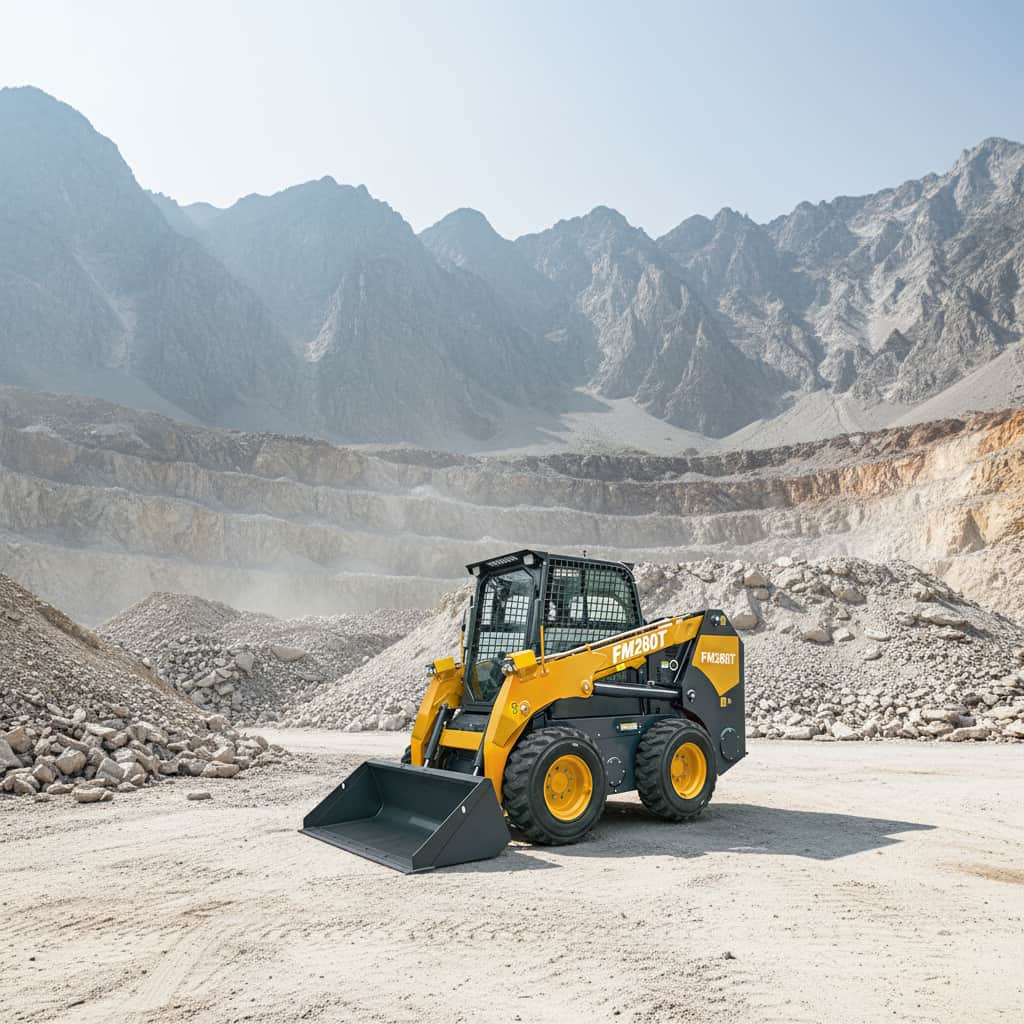

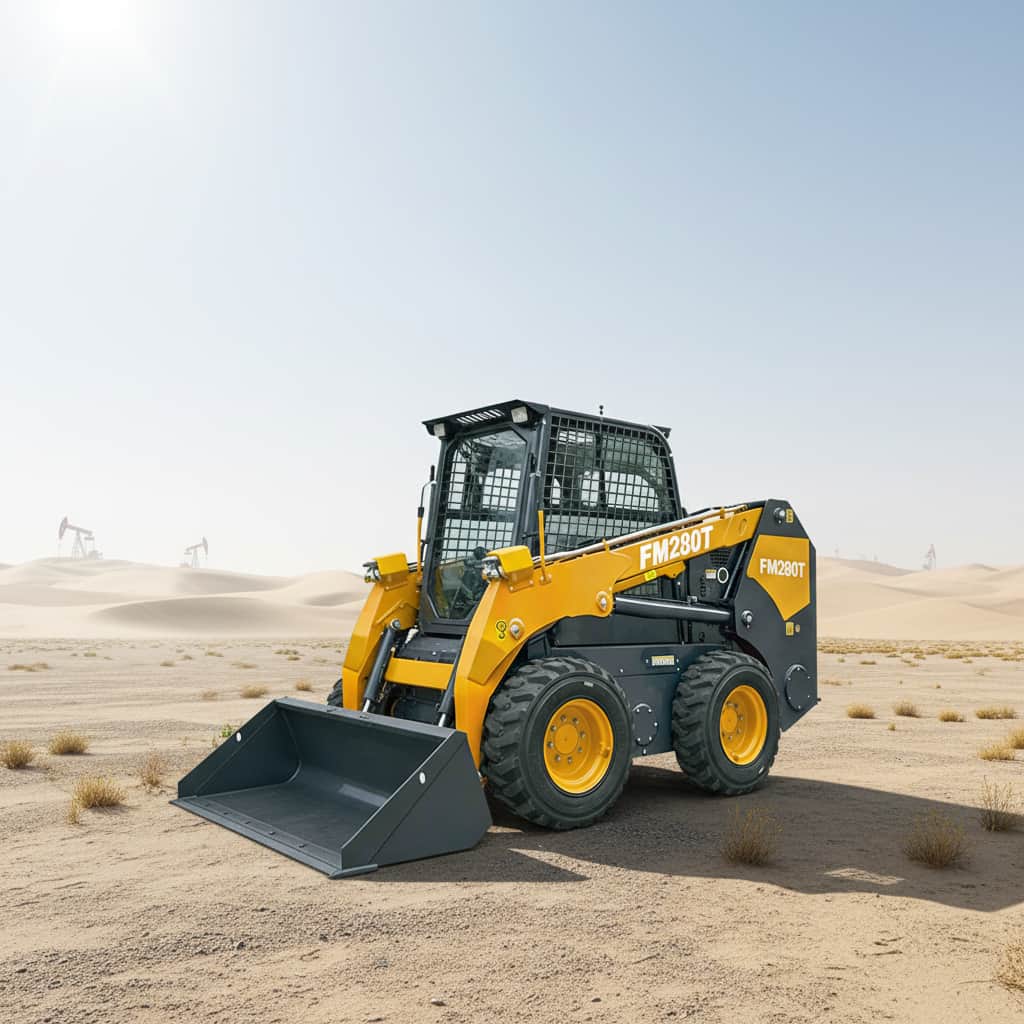

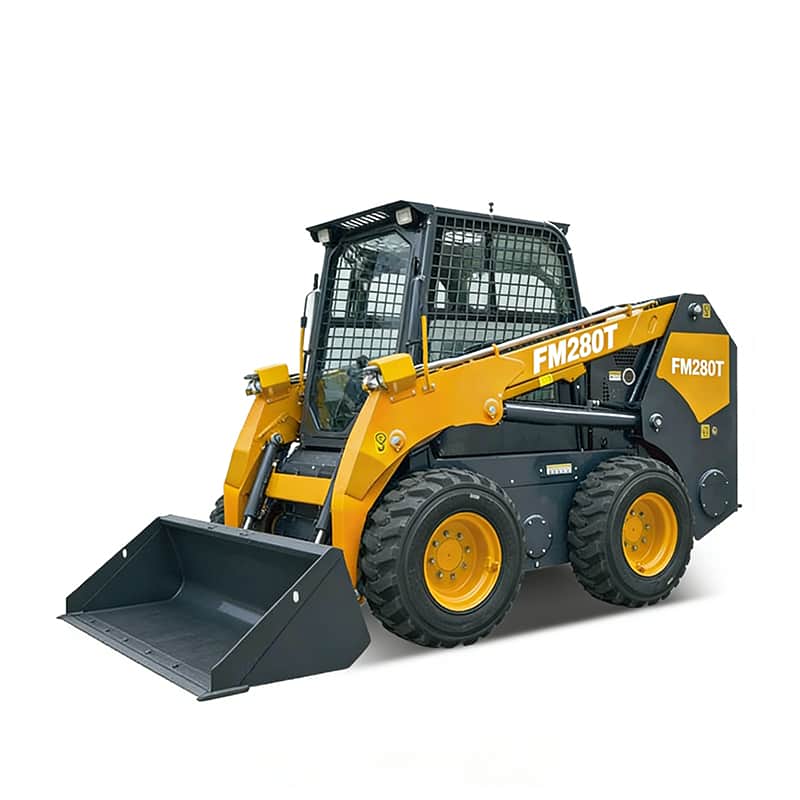

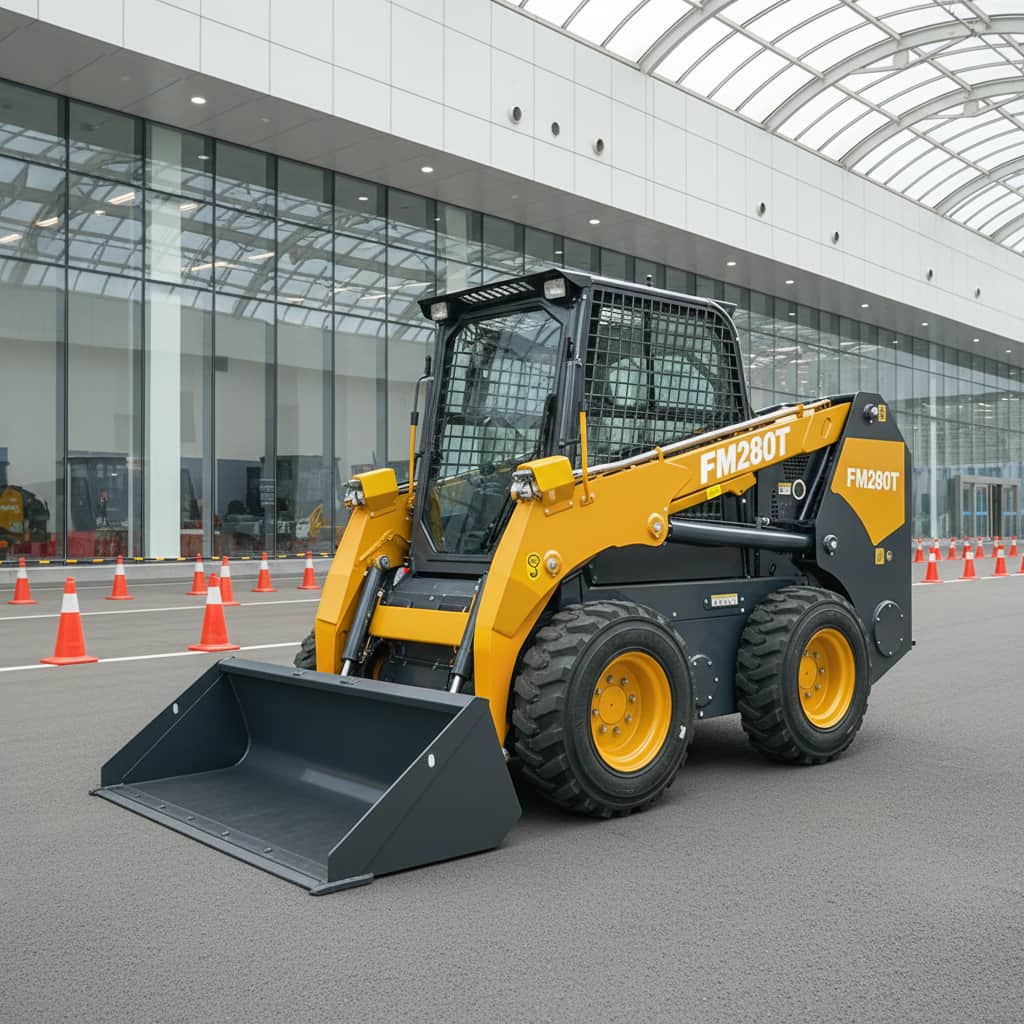

    The FM280T is a skid steer loader designed for medium to high-intensity work, balancing power performance, work efficiency, and equipment stability. It is suitable for various applications including construction, municipal engineering, industrial handling, and agricultural operations.

    The machine features a robust structure with a rated load of 1200 kg, achieving higher load capacity within a compact body, meeting the needs of high-frequency loading and unloading and material transfer. The 0.44 m³ bucket, combined with a 2664 mm discharge height, effectively improves loading efficiency, reduces working time, and increases the overall construction pace.

    The power system uses a Weichai engine with a rated power of 74 kW / 100 HP (National Standard III), providing ample power output for continuous high-load conditions while maintaining reliability and fuel efficiency. Whether scooping, pushing, or site clearing, it maintains stable and efficient operation.

    The FM280T's body dimensions are rationally designed, ensuring stability while maintaining flexibility and maneuverability. The skid steer structure allows the equipment to operate freely in confined spaces. It also supports quick attachment changes for various functions such as sweeping, crushing, grabbing, and drilling, enabling multi-purpose use and significantly improving equipment utilization.

    The FM280T is a reliable skid steer loader solution designed for efficiency and multi-scenario operations.
